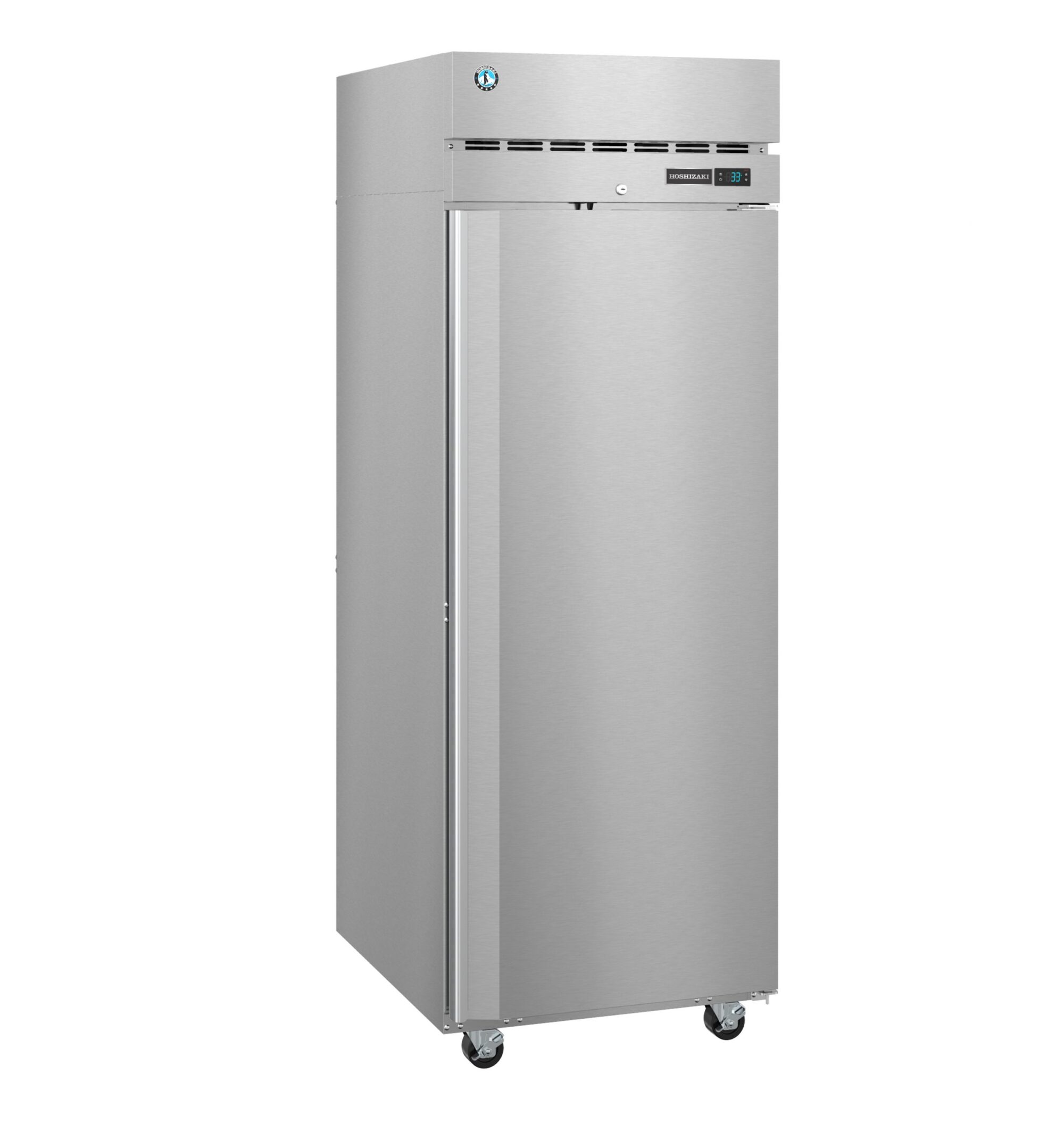

R1A-FS, Refrigerator, Single Section Upright, Full Stainless Door with Lock

REQUEST A QUOTE

  • Dimensions: 27.5″ W x 33.5″ D x 79.5″ H
  • Net capacity of 23.1 cubic feet
  • Nominal Compres. of 770 BTU/hr at 1/4 HP
  • Electrical consumption of 1.25 kWh/day, at 4.3 Amps on a 5 – 15P NEMA Plug
  • Exclusive stepped door design to protect recessed magnetic door gasket
  • Spring assisted self-closing lockable doors with stay open feature (field reversible w/o kit)
  • One piece, full length, extruded aluminum flush mount door handle
  • Unique “ducted” air distribution system
  • Full Stainless Door come standard with locks
  • Insulated with 2 3/8″ CFC free, foamed in place polyurethane
  • Stainless steel interior with stainless steel exterior front, sides and top
  • Solid state digital controller with temperature alarms and LED display (°F or °C)
  • R290 refrigerant
  • Refrigerant flow is controlled with a thermostatic expansion valve (TXV)
  • Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion

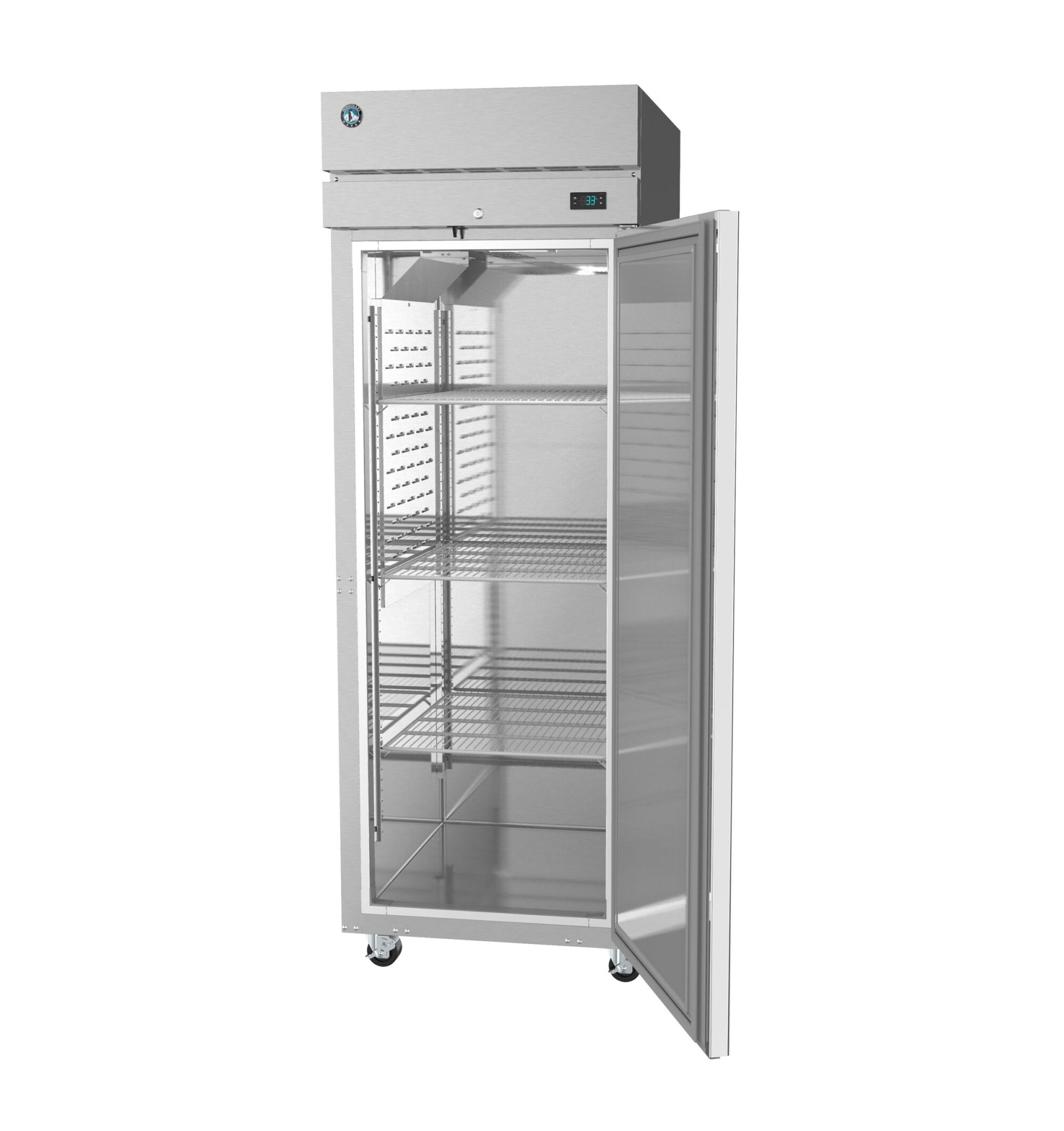

  • Includes 3 epoxy coated wire shelves adjustable in 1″ increments on stainless steel supports
  • Interior LED light bar is mounted horizontally on the ceiling
  • Standard with (4) 4″ Stem Casters (2 with brakes)
  • Optional kits: Additional epoxy or stainless steel shelves, universal tray/pan slides, foot pedal door opener, air filter
  • 115v/60/1, 10 ft. cord and plug
  • Shipping Crate: 37.5 “W x 31.5 “D x 81 “H at 345 lbs
  • ENERGY STAR® Qualified
  • Five Years compressor warranty, Three Years parts and labor warranty

Description

The R1A-FS Steelheart Series Upright Single Section Refrigerator with a Full Stainless Door is an attractive workhorse for any business. The dependable 1/4 HP motor that powers the compressor in the top of this unit provides the cabinet with a continuous stream of cold air through its unique ‘ducted’ air distribution system, which ensures a steady constant temperature.
The durable Stainless steel interior with stainless steel exterior front, sides and top resists the random damage normal in a commercial kitchen or business. Plus, it is easy to clean. The R1A-FS Includes 3 epoxy coated wire shelves adjustable in 1″ increments on stainless steel supports, and comes Standard with (4) 4″ Stem Casters (2 with brakes), it features Spring assisted self-closing lockable doors with stay open feature (field reversible w/o kit). Optional kits: Additional epoxy or stainless steel shelves, universal tray/pan slides, foot pedal door opener, air filter. The unit is ETL Sanitation Listed, ETL Safety (US & C) Listed, ENERGY STAR® Qualified and includes a Five Years compressor warranty / Three Years parts and labor warranty.

Additional information

Weight 345 lbs
Dimensions 27.5" W X 33.5" D X 79.5" H in
Height 79.5" H
Width 27.5" W
Depth 33.5" D
Shipping Weight 345 lbs
Warranty Valid in United States, Canada, Puerto Rico, & U.S. Territories. Contact factory for warranty in other countries.|Three Years: Parts & Labor warranty on entire machine.|Five Years: Parts warranty on Compressor.|
Certifications: ETL Sanitation Listed, ETL Safety (US & C) Listed, ENERGY STAR® Qualified
Energy Star® Qualified: Yes
Electrical Specs: Electrical Connection: 5 - 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 1.25 kwh/day, Amperage: 4.3, Max Fuse/HACR Breaker: 15 A
Plumbing Specs:
Utility Consumption:
Operating Limits: Ambient Temp Range: 45 - 100°F, Voltage Range: 104 - 126V, Control Setpoint Range: 31 - 52°F, Refrigerant: R290
