  • RIR1-SSB

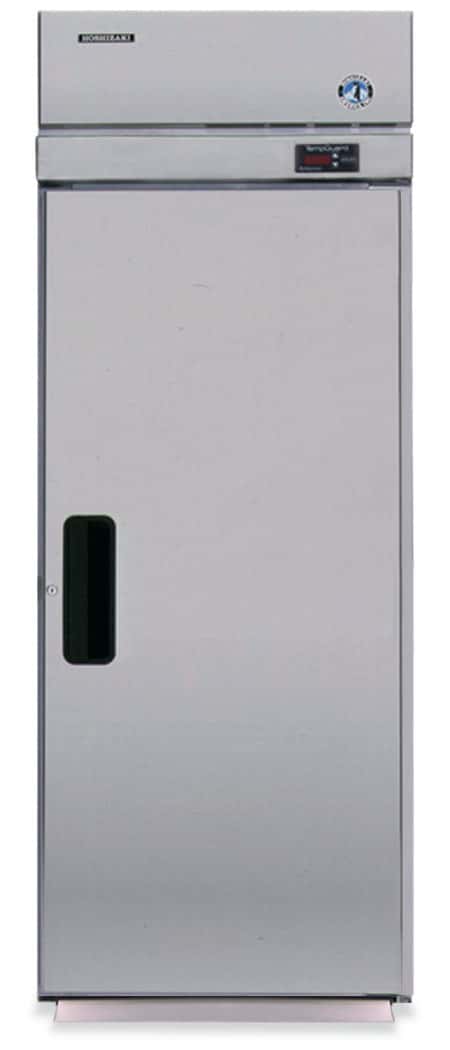

RIR1-SSB, Refrigerator, Roll-In Upright, Full Stainless Door


  • Dimensions: 35″ W x 38.5″ D x 90.6″ H
  • Net capacity of 37.7 cubic feet
  • Nominal Compres. of 1490 BTU/hr at 1/5 HP
  • Electrical consumption of 5.5 kWh/day, at 7 Amps on a 5 – 15P NEMA Plug
  • Exclusive “stepped” door design to protect recessed door gasket
  • Metal torsion spring door hinge design with stay open feature (hinging reversible at the factory)
  • Flush mount door handles
  • Cabinet will accept 72″ tall rack (rack by others)
  • Energy efficient thermostatic expansion valve self contained refrigeration system
  • Insulated with 2 3/8″ CFC free, foamed in place polyurethane
  • Stainless steel interior and exterior
  • Stainless steel ramp, stainless steel interior rack guides, and insulated stainless steel floor
  • R-404a refrigerant
  • Dual door frame heaters with energy saving on/off switch
  • Epoxy coated evaporator coil for extended life
  • Includes 1 rack
  • Epoxy coated wire shelves adjustable in 1″ increments on stainless steel supports
  • Standard with 4″ ramp
  • Unique “ducted” air distribution system
  • 115v/60/1, 8 ft. cord and plug
  • Shipping Crate: 39 “W x 40.75 “D x 95.4 “H at 500 lbs
  • Energy efficient automatic hot gas condensate evaporator
  • Five Years compressor warranty, Three Years parts and labor warranty

Out of stock

SKU: RIR1-SSB Categories: , , , Tag:



The RIR1-SSB Professional Series Upright Roll-In Refrigerator with a Full Stainless Door and Flush mount door handles is perfect for any professional. The reliable 1/5 HP motor that powers the compressor in the top of this unit provides the cabinet with a continuous stream of cool air, ensuring a steady constant temperature. The RIR1-SSB frame is composed of stainless steel, a material that resists the random damage normal in a commercial kitchen or business. Plus, it is easy to clean. The RIR1-SSB Includes 1 rack, and comes Standard with 4″ ramp, it features Metal torsion spring door hinge design with stay open feature (hinging reversible at the factory). The unit is NSF, cETLus Listed, ISO 9001:14001 and includes a Five Years compressor warranty / Three Years parts and labor warranty.


Weight 500 lbs lbs
Dimensions 38.5" D x 35" W x 90.6" H in

90.6″ H


35″ W


38.5″ D

Shipping Weight

500 lbs


NSF, cETLus Listed, ISO 9001:14001

Energy Star® Qualified:


Electrical Specs:

Electrical Connection: 5 – 15P NEMA, 115v/60/1, 8 ft. cord and plug, Energy Consumption: 5.5 kwh/day, Amperage: 7, Max Fuse/HACR Breaker: 15 A

Storage Specs:

Nominal Storage Capacity: 37.7ft3, Interior Storage Capacity: 37.7ft3, Door Opening: 29.4″ W x 72.8″ H , Depth with Door fully extended: 90.6″ D, Shelves Included: 1

Refrigeration Data:

Nominal Compres. of 1490 BTU/hr at 1/5 HP, Heat Rejection: 1135 BTU/hr

Operating Limits:

Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 36 – 50°F, , Refrigerant: R-404A
