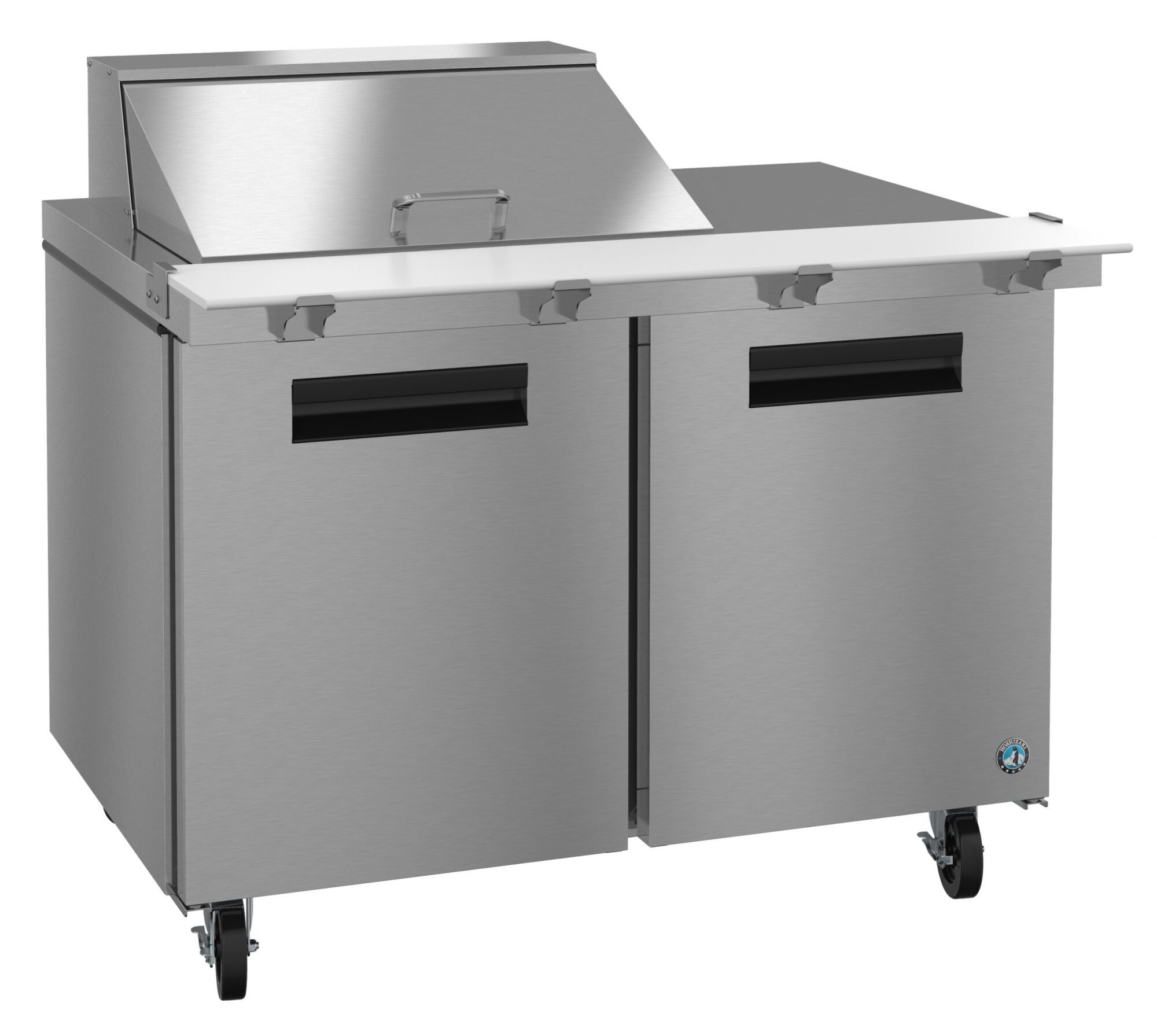

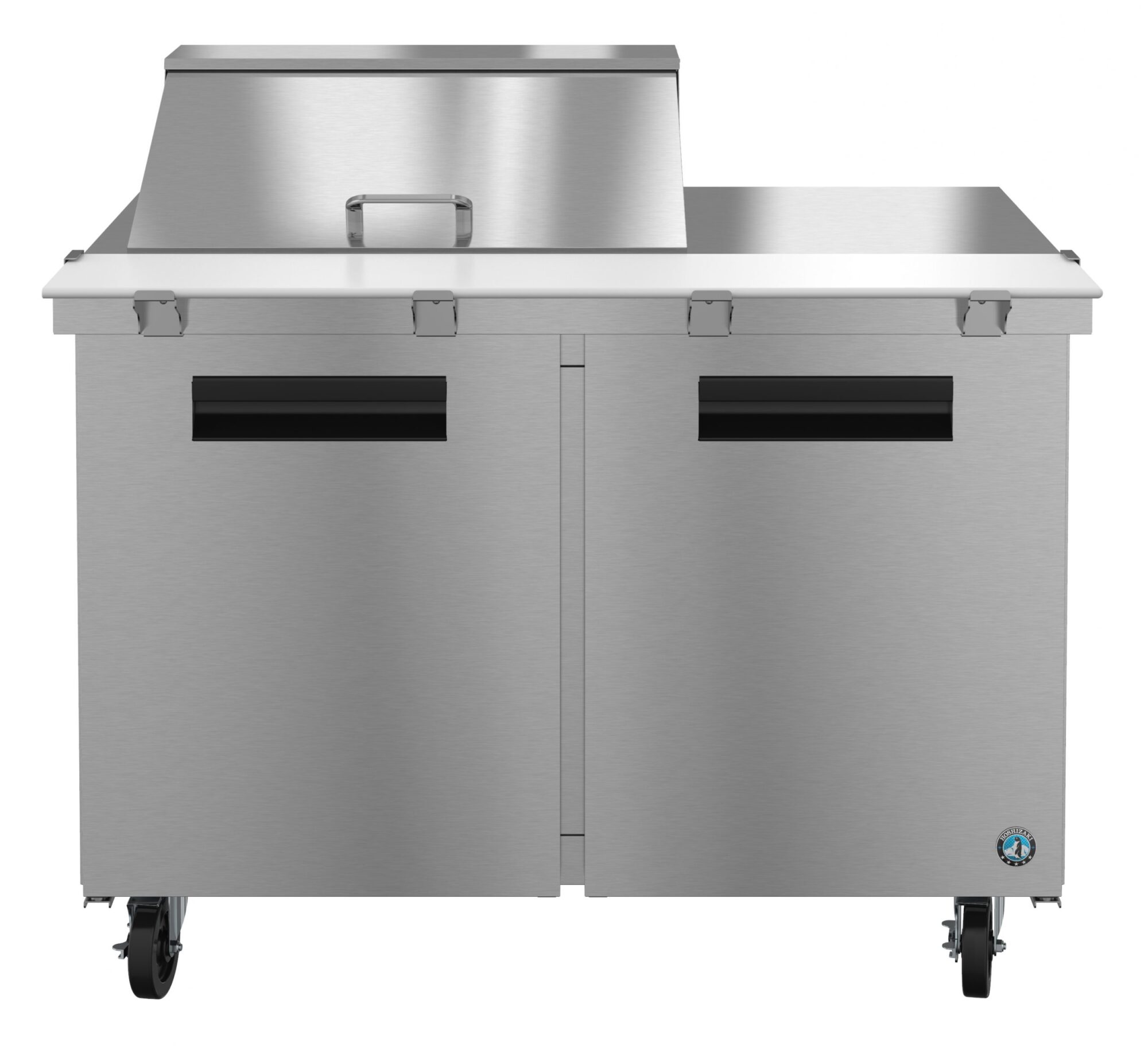

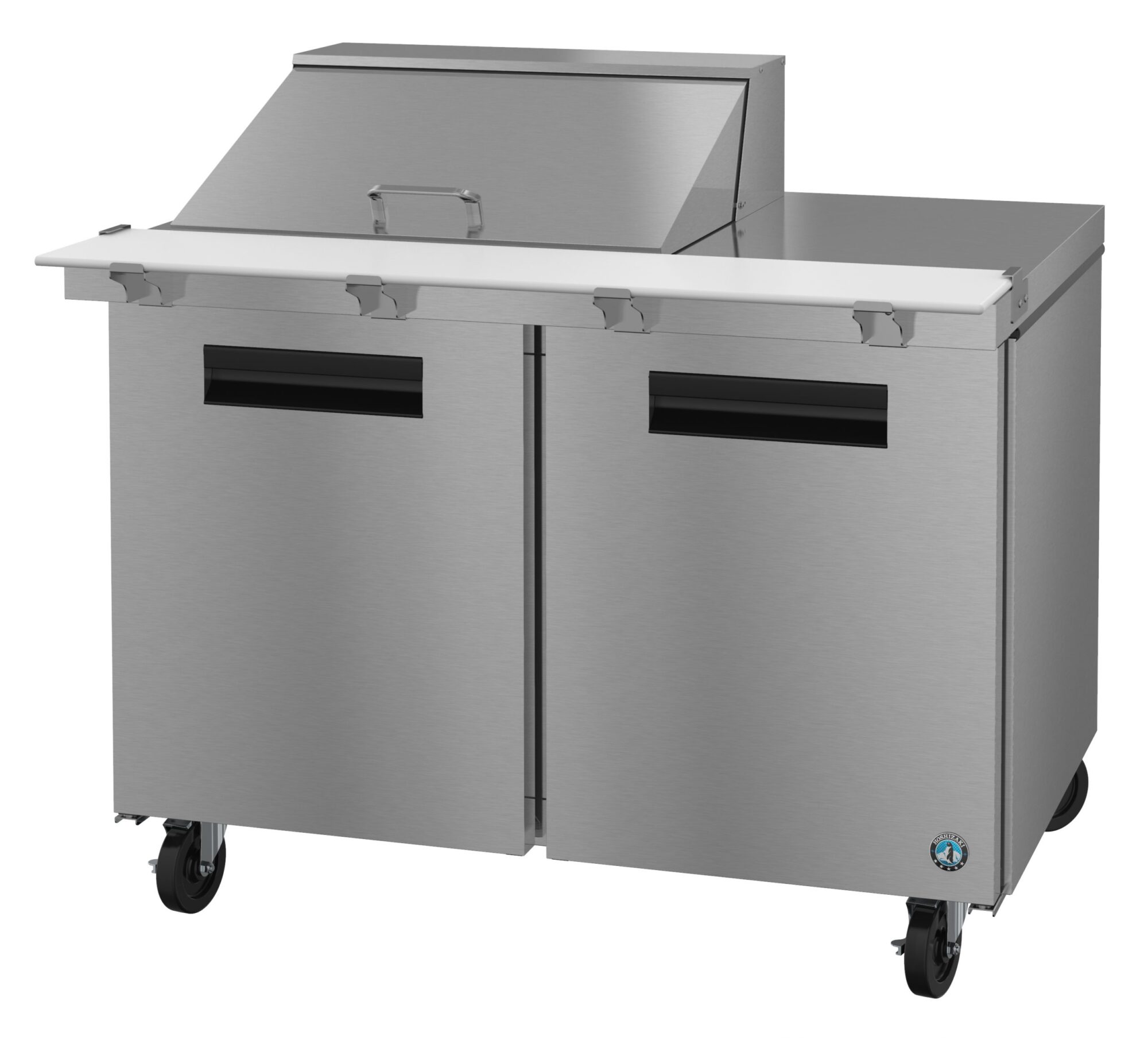

SR48A-12M, Refrigerator, Two Section Mega Top Prep Table, Stainless Doors

REQUEST A QUOTE

  • Dimensions: 48″ W x 34″ D x 44.25″ H
  • Net capacity of 11.95 cubic feet
  • Innovative air distribution system distributes air evenly to maintain product temperature
  • Enamel coated evaporator coil for extended life
  • Stainless steel exterior (front, sides, top) and a stainless steel interior
  • Field reversible, spring assisted self closing door with stay open feature (no kit req’d)
  • Extruded aluminum flush mount door handle
  • (2) stainless steel doors with ABS interior liner
  • Insulated with 2″ CFC free, foamed in place polyurethane
  • (2) epoxy coated wire shelves adjustable in 1/2″ increments on anodized aluminum supports
  • Engineered to maintain food safe temperatures in 100°F ambient conditions
  • R290 refrigerant
  • (4) 6″ Stem Casters (2 with brakes) are standard
  • Includes (12) polycarbonate plastic 1/6th size pans, 4″ deep (can accept 6″ deep pans)
  • 48″ x 10″ x 0.5″ thick white polyethylene cutting board is standard
  • Nominal Compres. of 1354 BTU/hr at 1/5 HP
  • 115v/60/1, 10 ft. cord and plug
  • Shipping Crate: 52.5″ L x 36″ D x 46.5″ H at 225 lbs
  • Automatic time-initiated heated defrost
  • Five Years compressor warranty, Three Years parts and labor warranty

Sales Literature

Price ListSales Catalog

Description

The SR48A-12M Steelheart Series Mega Top two section refrigerator with stainless doors is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 11.95 cubic feet this efficient mega top refrigerator and front air flow design is perfect for hot/tight kitchens. The SR48A-12M is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The SR48A-12M also includes (2) epoxy coated wire shelves adjustable in 1/2″ increments on anodized aluminum supports, (4) 6″ Stem Casters (2 with brakes) are standard, plus a field reversible, spring assisted self closing door with stay open feature (no kit req’d). Electrical consumption of 3.2 kWh/day at 2.5 Amps, 10 ft long cord with a 5 – 15P NEMA plug. 48″ x 10″ x 0.5″ thick white polyethylene cutting board is standard. The unit is ETL Sanitation Listed, ETL Safety (US & C) Listed and includes a Five Years compressor warranty / Three Years parts and labor warranty.

Additional information

Weight225 lbs
Dimensions48" W X 34" D X 44.25" H in
Height44.25" H
Width48" W
Depth34" D
Shipping Weight225 lbs
WarrantyValid in United States, Canada, Puerto Rico, & U.S. Territories. Contact factory for warranty in other countries.|Three Years: Parts & Labor warranty on entire machine.|Five Years: Parts warranty on Compressor.|
Certifications:ETL Sanitation Listed, ETL Safety (US & C) Listed
Energy Star® Qualified:No
Electrical Specs:Electrical Connection: 5 - 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 3.2 kwh/day, Amperage: 2.5, Max Fuse/HACR Breaker: 15 A
Plumbing Specs:
Utility Consumption:
Operating Limits:Ambient Temp Range: 45 - 100°F, Voltage Range: 104 - 126V, Control Setpoint Range: 32 - 52°F, Refrigerant: R290
