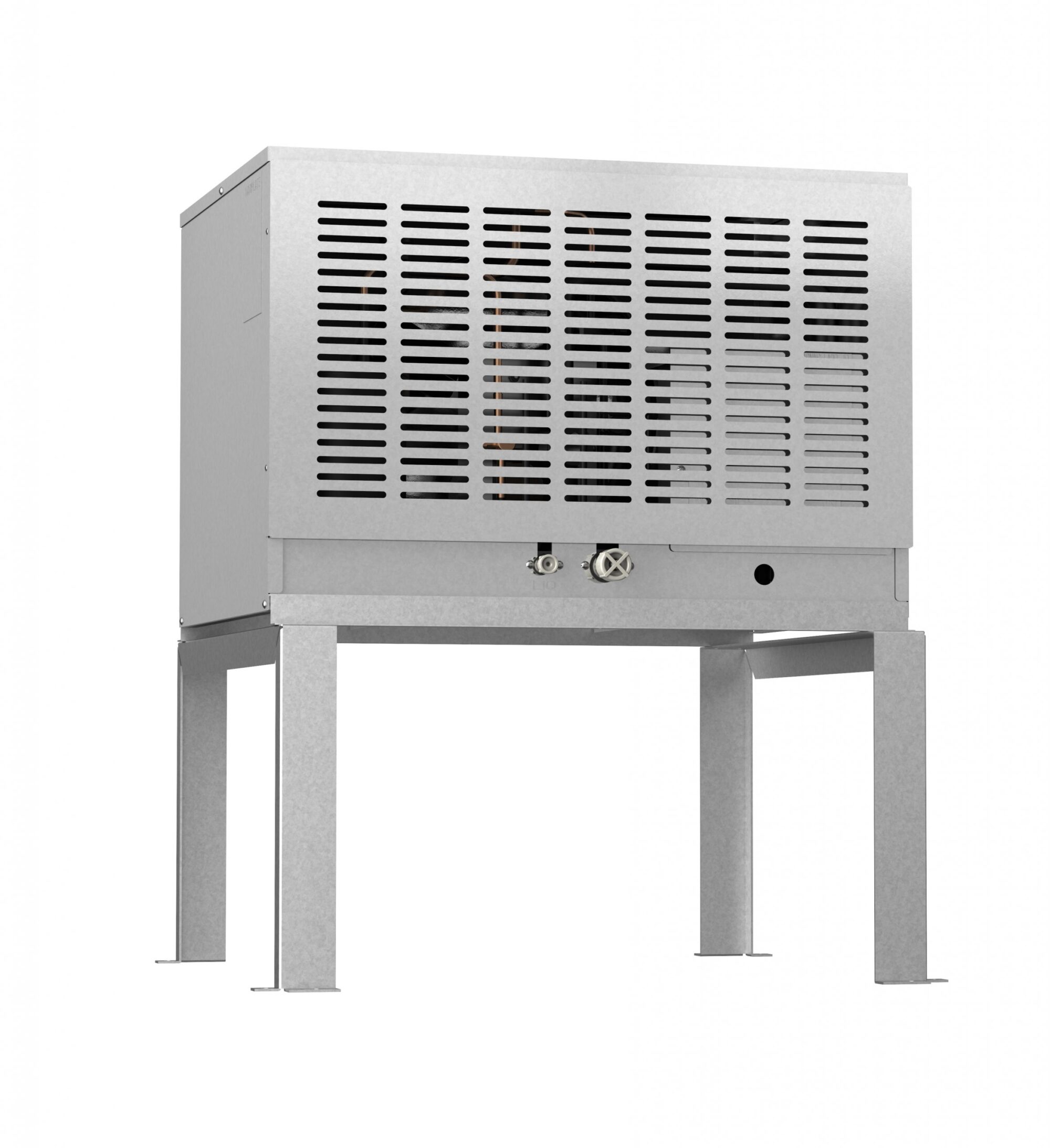

SRC-10H, SRC Series Remote Condenser

REQUEST A QUOTE

Out of stock

  • Dimensions: 28-1/4″ W x 25-3/8″ D x 34-7/8″ H
  • Remote condenser for FS-1001MLH-C, FS-1022MLH-C
  • Quiet operation
  • Weather resistant cabinet for longer life
  • Must be hardwired at the site (3 wire, including ground)
  • Allow 24″ clearance for best performance
  • Single Phase, 208-230v/60/1, Must be hardwired at the site (3 wire, including ground)
  • R-404a refrigerant (8 lbs. 2 oz. / 3685 g)
  • Compatible icemakers, sold separately: FS-1001MLH-C, FS-1022MLH-C
  • Three Years: Parts & Labor warranty on entire unit.
  • Five Years: Parts warranty on air-cooled condenser coil.

Out of stock

SKU: SRC-10H Categories: , ,

LIBRARY

Description

The SRC-10H, SRC Series Remote Condenser provides quiet, energy efficient operation that is designed to save money on energy costs and reduce excess heat in commercial kitchens. This Remote Condenser can be installed away from the ice maker using Pre-charged refrigerant lines (20′, 35′, 55′), tubing kits sold separately. Contact Tech Support if installations exceed these distances.
The SRC-10H Remote Condenser operates on Single Phase, 208-230v/60/1, Must be hardwired at the site (3 wire, including ground), and R-404a refrigerant (8 lbs. 2 oz. / 3685 g). Compatible icemakers, sold separately: FS-1001MLH-C, FS-1022MLH-C. The unit is ISO 9001:14001UL Listed and includes a Three Years: Parts & Labor warranty on entire unit. / Five Years: Parts warranty on air-cooled condenser coil.

Additional information

Weight 143 lbs
Dimensions 28-1/4" W X 25-3/8" D X 34-7/8" H in
Height 34-7/8" H
Width 28-1/4" W
Depth 25-3/8" D
Shipping Weight 143 lbs
Warranty Valid in United States, Canada, Puerto Rico, & U.S. Territories. Contact factory for warranty in other countries.|Three Years: Parts & Labor warranty on entire unit.|Five Years: Parts warranty on air-cooled condenser coil.|
Certifications: ISO 9001:14001UL Listed
Energy Star® Qualified: No
Electrical Specs: Icemaker Connection: Single Phase, 208-230v/60/1, Must be hardwired at the site (3 wire, including ground)
Plumbing Specs:
Utility Consumption:
Operating Limits: Ambient Temp Range: -4 - 122°F, Voltage Range: 187 - 253V, Refrigerant: R-404a
