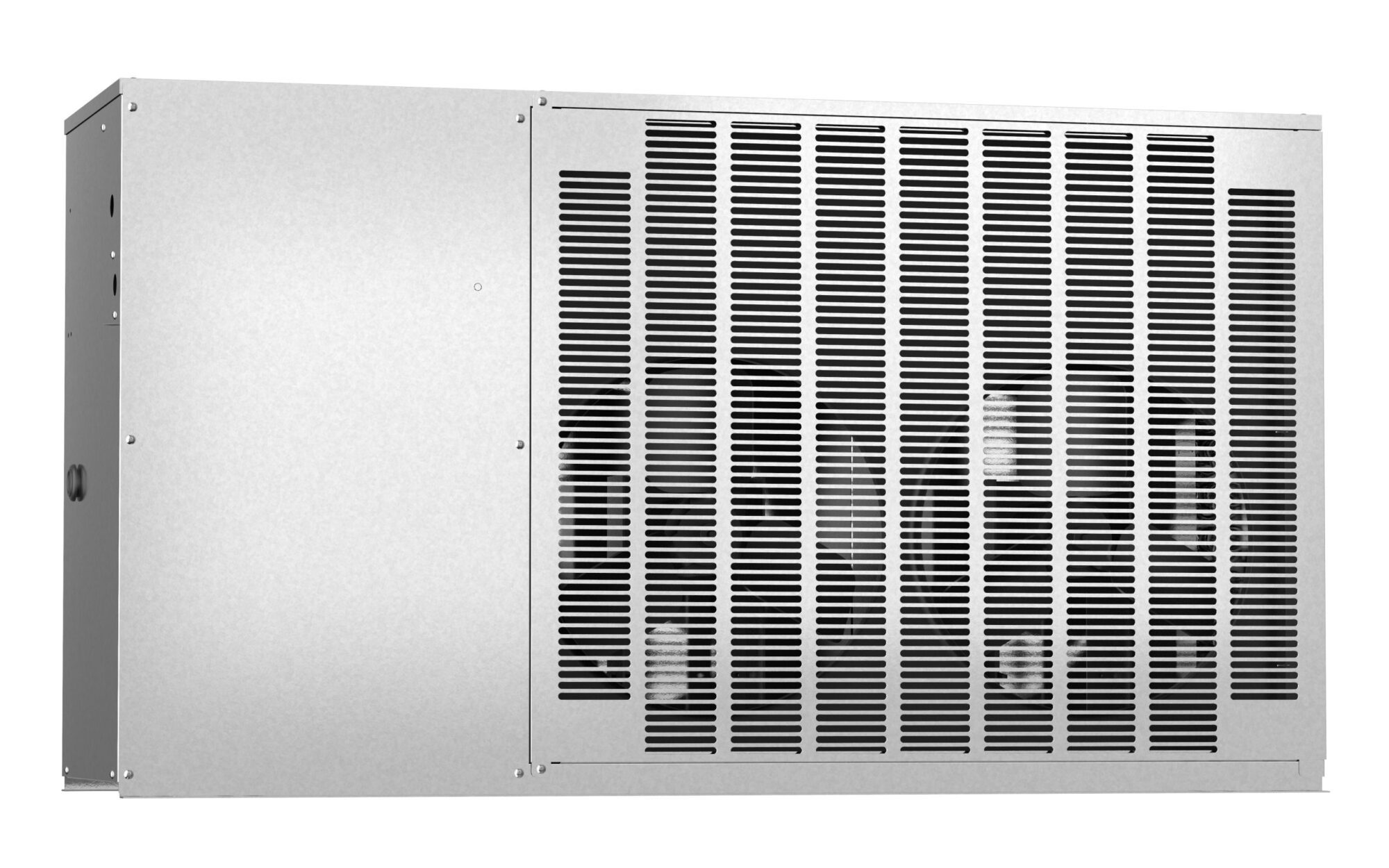

SRK-12H, SRK Series Remote Condenser

REQUEST A QUOTE

Out of stock

REPLACED BY SRK-12J

  • Dimensions: 52-3/8″ W x 19-1/2″ D x 43″ H
  • Remote condenser for KMS-1122MLH
  • Quiet operation
  • Weather resistant cabinet for longer life
  • Must be hardwired at the site ()
  • Allow 24″ clearance for best performance
  • Single Phase, 208-230v/60/1, Must be hardwired at the site ()
  • R-404a refrigerant (15 lbs. 14 oz. / 7200 g)
  • Compatible icemakers, sold separately: KMS-1122MLH
  • Three Years: Parts & Labor warranty on entire unit.
  • Five Years: Parts warranty on air-cooled condenser coil.

Out of stock

SKU: SRK-12H Categories: , ,

LIBRARY

Description

The SRK-12H, SRK Series Remote Condenser provides quiet, energy efficient operation that is designed to save money on energy costs and reduce excess heat in commercial kitchens. This Remote Condenser can be installed away from the ice maker using Pre-charged refrigerant lines (20′, 35′, 55′), tubing kits sold separately. Contact Tech Support if installations exceed these distances.
The SRK-12H Remote Condenser operates on Single Phase, 208-230v/60/1, Must be hardwired at the site (), and R-404a refrigerant (15 lbs. 14 oz. / 7200 g). Compatible icemakers, sold separately: KMS-1122MLH. The unit is ISO 9001:14001, UL Listed and includes a Three Years: Parts & Labor warranty on entire unit. / Five Years: Parts warranty on air-cooled condenser coil.

Additional information

Weight 230 lbs
Dimensions 52-3/8" W X 19-1/2" D X 43" H in
Height 43" H
Width 52-3/8" W
Depth 19-1/2" D
Shipping Weight 230 lbs
Warranty Valid in United States, Canada, Puerto Rico, & U.S. Territories. Contact factory for warranty in other countries.|Three Years: Parts & Labor warranty on entire unit.|Five Years: Parts warranty on air-cooled condenser coil.|
Certifications: ISO 9001:14001, UL Listed
Energy Star® Qualified: No
Electrical Specs: Icemaker Connection: Single Phase, 208-230v/60/1, Must be hardwired at the site ()
Plumbing Specs:
Utility Consumption:
Operating Limits: Ambient Temp Range: -20 - 122°F, Voltage Range: 187 - 253V, Refrigerant: R-404a
