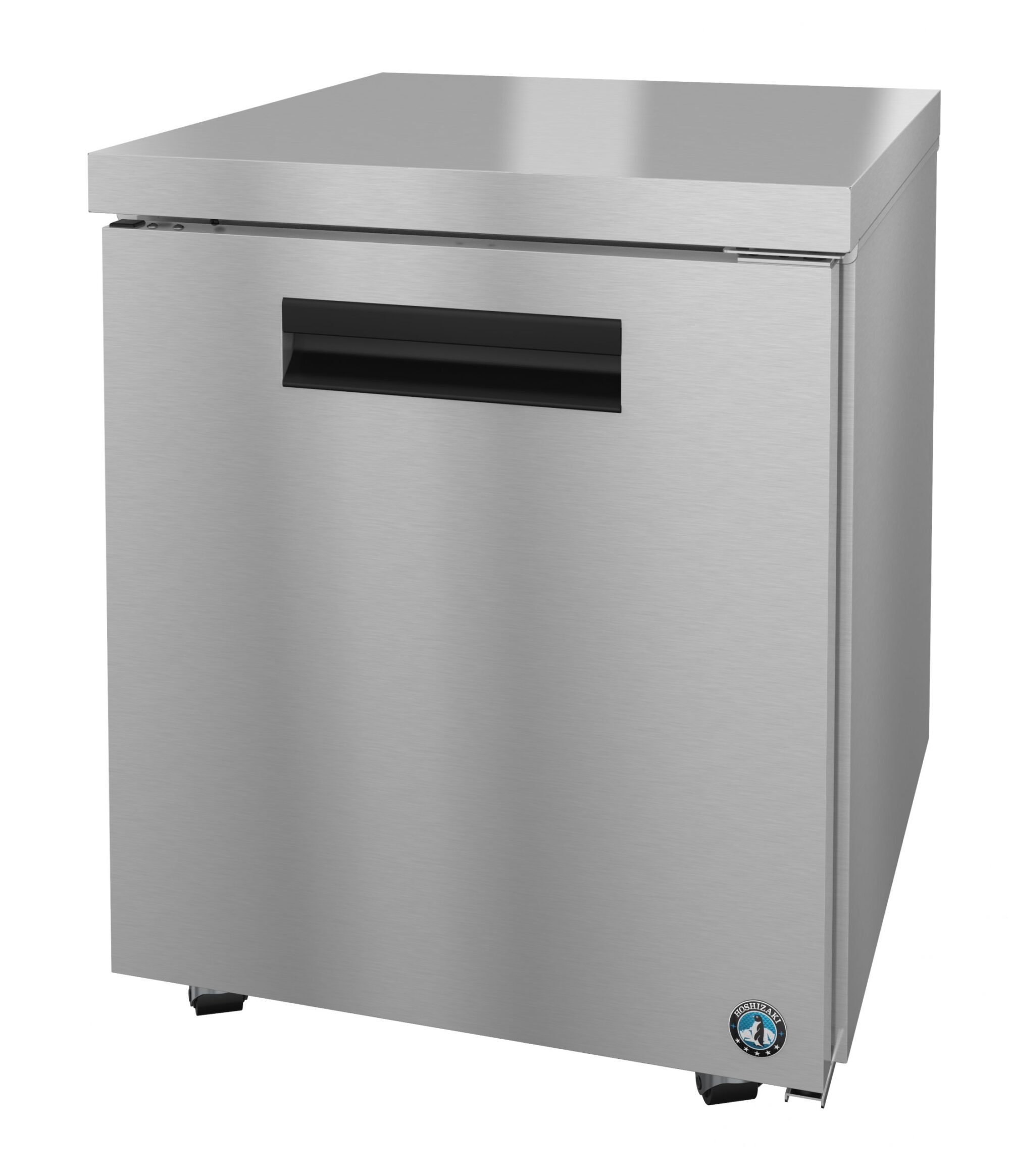

UF27A-LP, Freezer, Single Section Undercounter, Stainless Door

REQUEST A QUOTE

  • Dimensions: 27″ W x 30″ D x 31.9″ H
  • Net capacity of 6.22 cubic feet
  • Innovative air distribution system distributes air evenly to maintain product temperature
  • Enamel coated evaporator coil for extended life
  • Stainless steel exterior (front, sides, top) and a stainless steel interior
  • Field reversible, spring assisted self closing door with stay open feature (no kit req’d)
  • Extruded aluminum flush mount door handle
  • (1) stainless steel door with ABS interior liner
  • Insulated with 2″ CFC free, foamed in place polyurethane
  • (1) epoxy coated wire shelf adjustable in 1/2″ increments on anodized aluminum supports
  • Engineered to maintain food safe temperatures in 100°F ambient conditions
  • R290 refrigerant
  • (4) 2.25″ Stem Casters (2 with brakes) are standard
  • ?
  • Optional kits: 4″ or 6″ Casters, Overshelves, Door Reversal Kit, Additional epoxy or stainless steel shelves
  • Nominal Compres. of 798 BTU/hr at 1/5 HP
  • 115v/60/1, 10 ft. cord and plug
  • Shipping Crate: 34″ L x 31.5″ D x 36.5″ H at 156 lbs
  • Automatic time-initiated heated defrost
  • Five Years compressor warranty, Three Years parts and labor warranty

Sales Literature

Price ListSales Catalog

Description

The UF27A-LP Steelheart Series Undercounter single section freezer with a stainless door is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 6.22 cubic feet this efficient undercounter freezer and front air flow design is perfect for hot/tight kitchens. The UF27A-LP is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The UF27A-LP also includes (1) epoxy coated wire shelf adjustable in 1/2″ increments on anodized aluminum supports, (4) 2.25″ Stem Casters (2 with brakes) are standard, plus a field reversible, spring assisted self closing door with stay open feature (no kit req’d). Electrical consumption of 2.49 kWh/day at 2.3 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 4″ or 6″ Casters, Overshelves, Door Reversal Kit, Additional epoxy or stainless steel shelves. The unit is ETL Sanitation Listed, ETL Safety (US & C) Listed and includes a Five Years compressor warranty / Three Years parts and labor warranty.

Additional information

Weight156 lbs
Dimensions27" W X 30" D X 31.9" H in
Height31.9" H
Width27" W
Depth30" D
Shipping Weight156 lbs
WarrantyValid in United States, Canada, Puerto Rico, & U.S. Territories. Contact factory for warranty in other countries.|Three Years: Parts & Labor warranty on entire machine.|Five Years: Parts warranty on Compressor.|
Certifications:ETL Sanitation Listed, ETL Safety (US & C) Listed
Energy Star® Qualified:No
Electrical Specs:Electrical Connection: 5 - 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 2.49 kwh/day, Amperage: 2.3, Max Fuse/HACR Breaker: 15 A
Plumbing Specs:
Utility Consumption:
Operating Limits:Ambient Temp Range: 45 - 100°F, Voltage Range: 104 - 126V, Control Setpoint Range: -10 - +10°F, Refrigerant: R290
