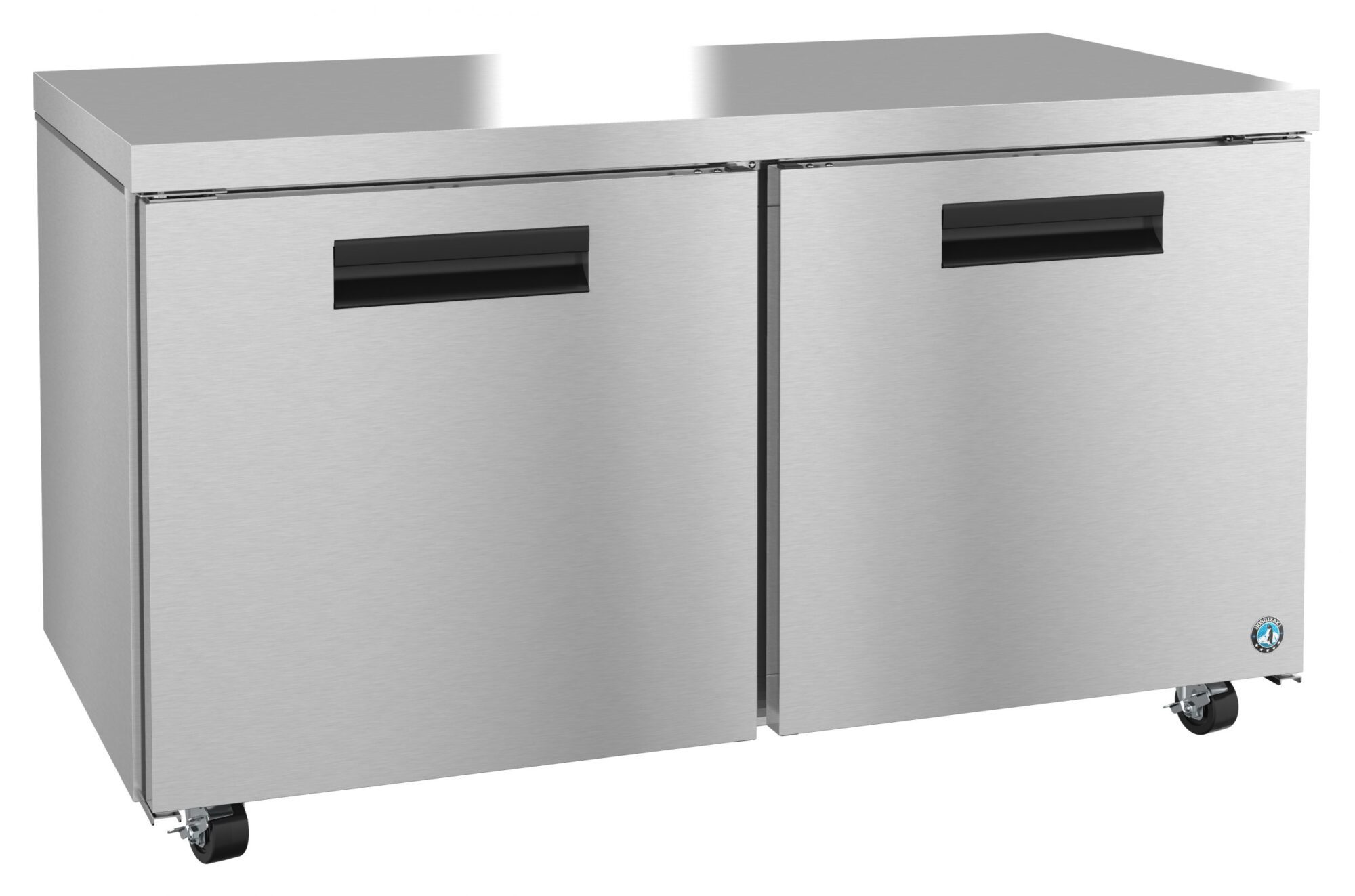

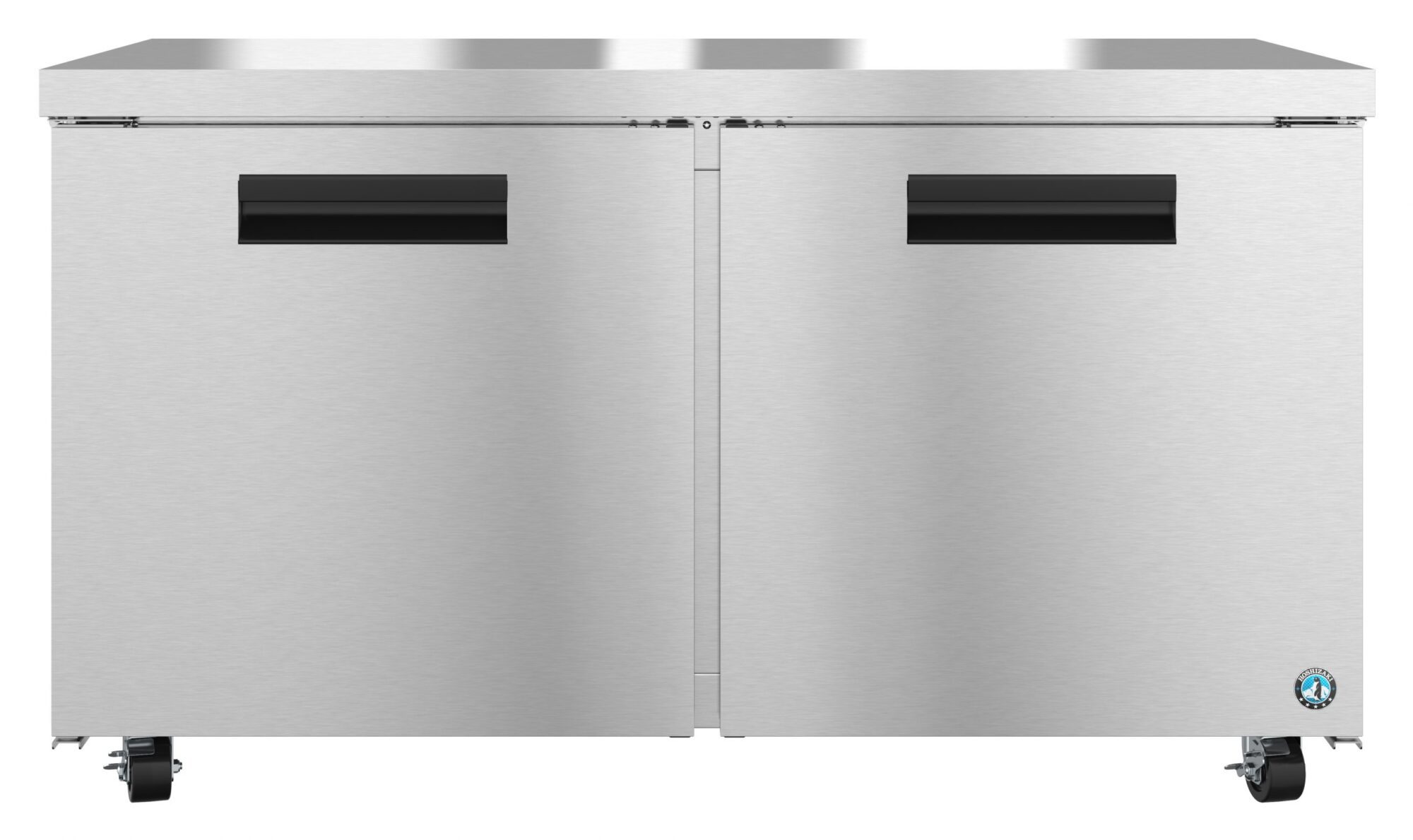

UF60A, Freezer, Two Section Undercounter, Stainless Doors

REQUEST A QUOTE

  • Dimensions: 60″ W x 30″ D x 33.63″ H
  • Net capacity of 15.38 cubic feet
  • Innovative air distribution system distributes air evenly to maintain product temperature
  • Enamel coated evaporator coil for extended life
  • Stainless steel exterior (front, sides, top) and a stainless steel interior
  • Field reversible, spring assisted self closing door with stay open feature (no kit req’d)
  • Extruded aluminum flush mount door handle
  • (2) stainless steel doors with ABS interior liner
  • Insulated with 2″ CFC free, foamed in place polyurethane
  • (2) epoxy coated wire shelves adjustable in 1/2″ increments on anodized aluminum supports
  • Engineered to maintain food safe temperatures in 100°F ambient conditions
  • R290 refrigerant
  • (4) 4″ Stem Casters (2 with brakes) are standard
  • ?
  • Optional kits: 2.25″ or 6″ casters, Epoxy wire shelf, Stainless steel back, Overshelves, Locks
  • Nominal Compres. of 1360 BTU/hr at 1/3 HP
  • 115v/60/1, 10 ft. cord and plug
  • Shipping Crate: 62″ L x 34″ D x 36.5″ H at 268 lbs
  • Automatic time-initiated heated defrost
  • Five Years compressor warranty, Three Years parts and labor warranty

Sales Literature

Price ListSales Catalog

Description

The UF60A Steelheart Series Undercounter two section freezer with stainless doors is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 15.38 cubic feet this efficient undercounter freezer and front air flow design is perfect for hot/tight kitchens. The UF60A is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The UF60A also includes (2) epoxy coated wire shelves adjustable in 1/2″ increments on anodized aluminum supports, (4) 4″ Stem Casters (2 with brakes) are standard, plus a field reversible, spring assisted self closing door with stay open feature (no kit req’d). Electrical consumption of 4.22 kWh/day at 5.6 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 2.25″ or 6″ casters, Epoxy wire shelf, Stainless steel back, Overshelves, Locks. The unit is ETL Sanitation Listed, ETL Safety (US & C) Listed and includes a Five Years compressor warranty / Three Years parts and labor warranty.

Additional information

Weight268 lbs
Dimensions60" W X 30" D X 33.63" H in
Height33.63" H
Width60" W
Depth30" D
Shipping Weight268 lbs
WarrantyValid in United States, Canada, Puerto Rico, & U.S. Territories. Contact factory for warranty in other countries.|Three Years: Parts & Labor warranty on entire machine.|Five Years: Parts warranty on Compressor.|
Certifications:ETL Sanitation Listed, ETL Safety (US & C) Listed
Energy Star® Qualified:No
Electrical Specs:Electrical Connection: 5 - 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 4.22 kwh/day, Amperage: 5.6, Max Fuse/HACR Breaker: 15 A
Plumbing Specs:
Utility Consumption:
Operating Limits:Ambient Temp Range: 45 - 100°F, Voltage Range: 104 - 126V, Control Setpoint Range: -10 - +10°F, Refrigerant: R290
