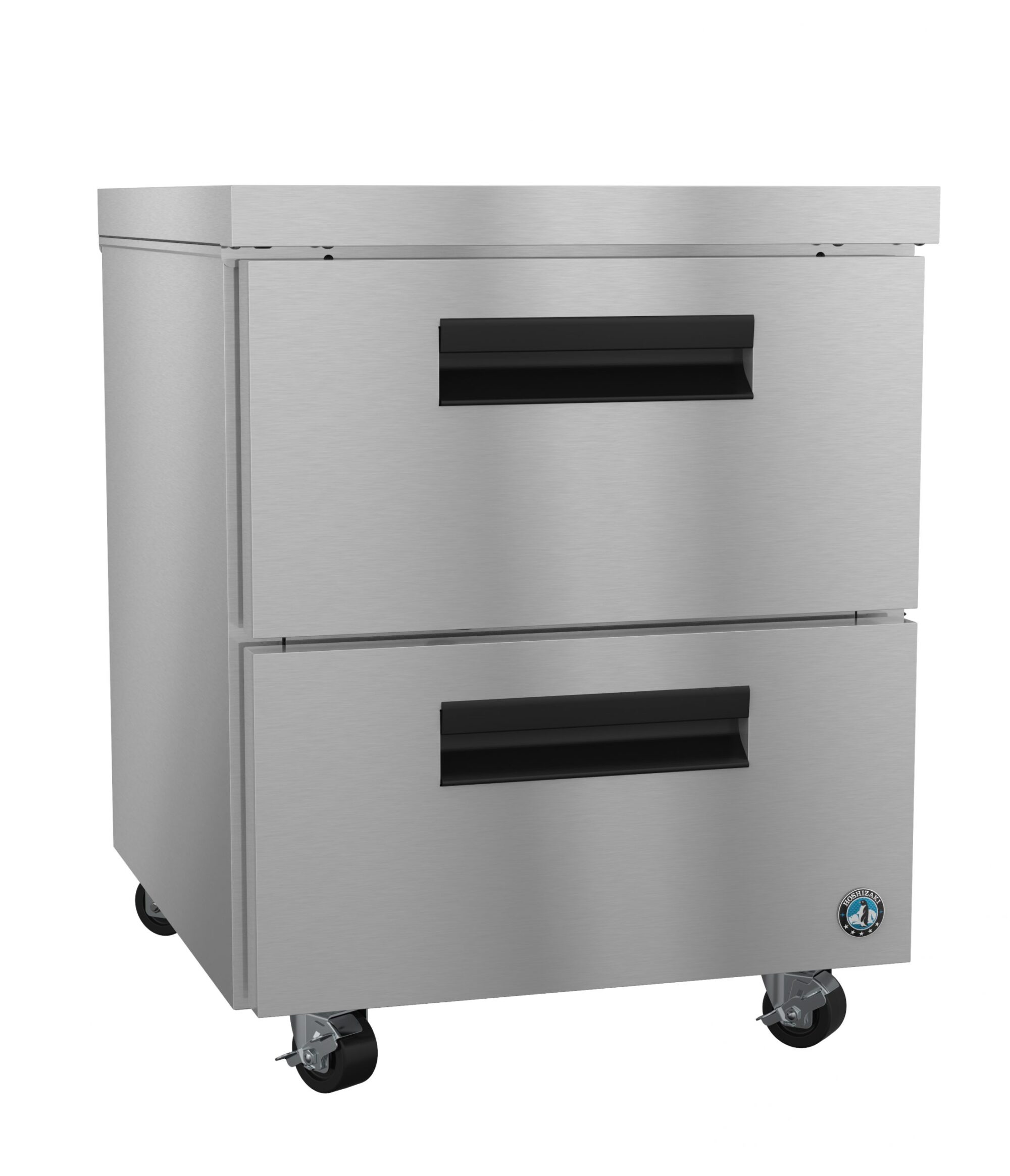

UR27A-D2, Refrigerator, Single Section Undercounter, Stainless Drawers

REQUEST A QUOTE

  • Dimensions: 27″ W x 30″ D x 33.63″ H
  • Net capacity of 6.22 cubic feet
  • Innovative air distribution system distributes air evenly to maintain product temperature
  • Enamel coated evaporator coil for extended life
  • Stainless steel exterior (front, sides, top) and a stainless steel interior
  • The drawer slides are constructed of 16 gauge stainless steel with durable acetal rollers
  • Extruded aluminum flush mount door handle
  • (2) stainless steel drawers, fully welded construction and securely fastened in the cabinet
  • Insulated with 2″ CFC free, foamed in place polyurethane
  • Drawers capacity: Top: (1) 12″ x 20″ full size and (2) 1/4 size pans, 4″ deep. Bottom: (1) 12″ x 20″ x 6″ deep pan (pans by others)
  • Engineered to maintain food safe temperatures in 100°F ambient conditions
  • R290 refrigerant
  • (4) 4″ Stem Casters (2 with brakes) are standard
  • Automatic off-cycle defrost
  • Optional kits: 2.25″ Casters – to meet ADA, 6″ Casters, Stainless steel back, Drawer divider bars
  • Nominal Compres. of 988 BTU/hr at 1/6 HP
  • 115v/60/1, 10 ft. cord and plug
  • Shipping Crate: 34″ L x 31.5″ D x 36.5″ H at 176 lbs
  • ENERGY STAR® qualified
  • Five Years compressor warranty, Three Years parts and labor warranty

Sales Literature

Price ListSales Catalog

Description

The UR27A-D2 Steelheart Series Undercounter single section refrigerator with stainless drawers is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 6.22 cubic feet this efficient undercounter refrigerator and front air flow design is perfect for hot/tight kitchens. The UR27A-D2 is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The UR27A-D2 also includes Drawers capacity: Top: (1) 12″ x 20″ full size and (2) 1/4 size pans, 4″ deep. Bottom: (1) 12″ x 20″ x 6″ deep pan (pans by others), (4) 4″ Stem Casters (2 with brakes) are standard, plus a the drawer slides are constructed of 16 gauge stainless steel with durable acetal rollers. Electrical consumption of 1.34 kWh/day at 2.5 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 2.25″ Casters – to meet ADA, 6″ Casters, Stainless steel back, Drawer divider bars. The unit is ETL Sanitation Listed, ETL Safety (US & C) Listed, ENERGY STAR® Qualified and includes a Five Years compressor warranty / Three Years parts and labor warranty.

Additional information

Weight176 lbs
Dimensions27" W X 30" D X 33.63" H in
Height33.63" H
Width27" W
Depth30" D
Shipping Weight176 lbs
WarrantyValid in United States, Canada, Puerto Rico, & U.S. Territories. Contact factory for warranty in other countries.|Three Years: Parts & Labor warranty on entire machine.|Five Years: Parts warranty on Compressor.|
Certifications:ETL Sanitation Listed, ETL Safety (US & C) Listed, ENERGY STAR® Qualified
Energy Star® Qualified:Yes
Electrical Specs:Electrical Connection: 5 - 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 1.34 kwh/day, Amperage: 2.5, Max Fuse/HACR Breaker: 15 A
Plumbing Specs:
Utility Consumption:
Operating Limits:Ambient Temp Range: 45 - 100°F, Voltage Range: 104 - 126V, Control Setpoint Range: 32 - 52°F, Refrigerant: R290
