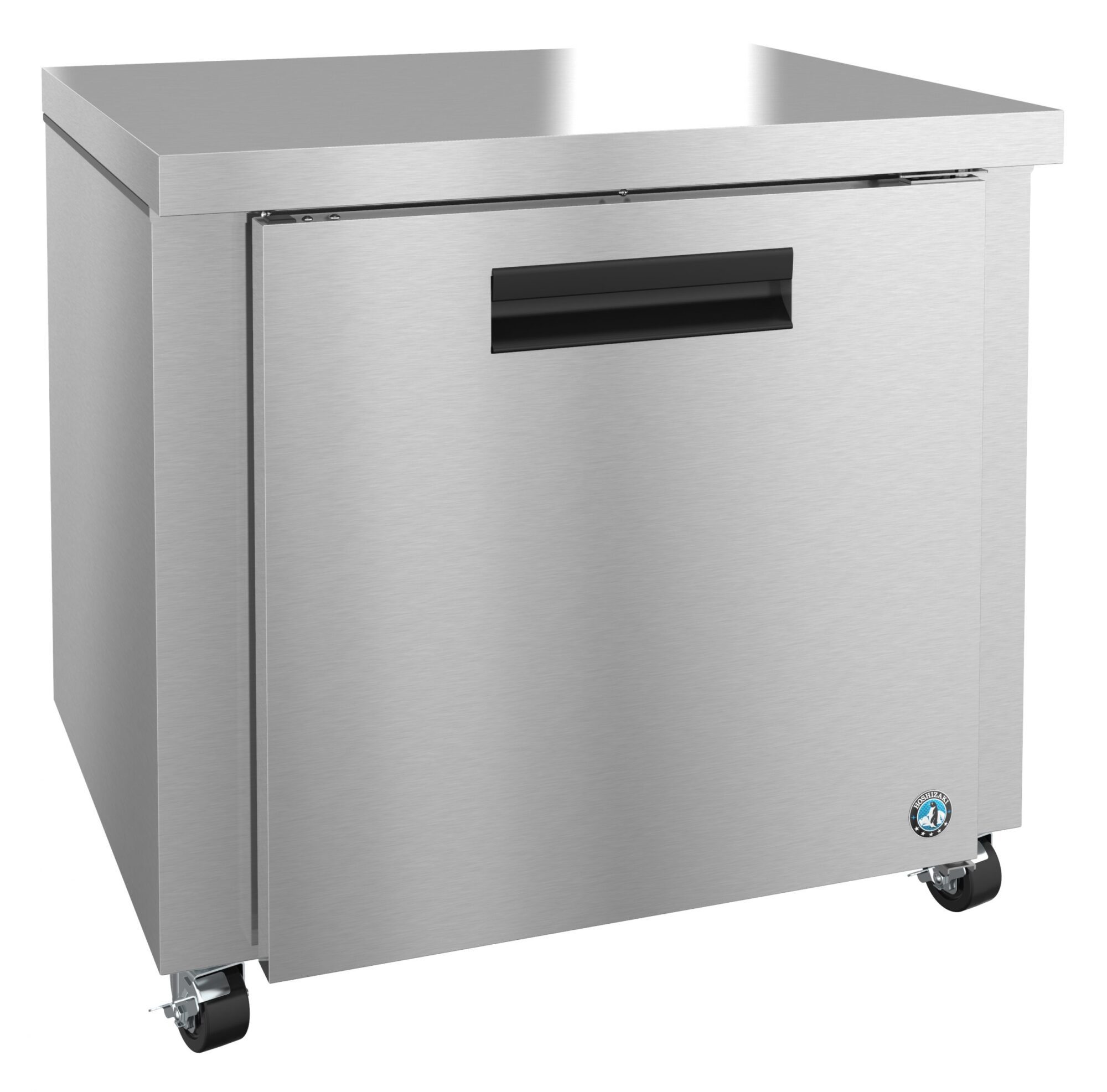

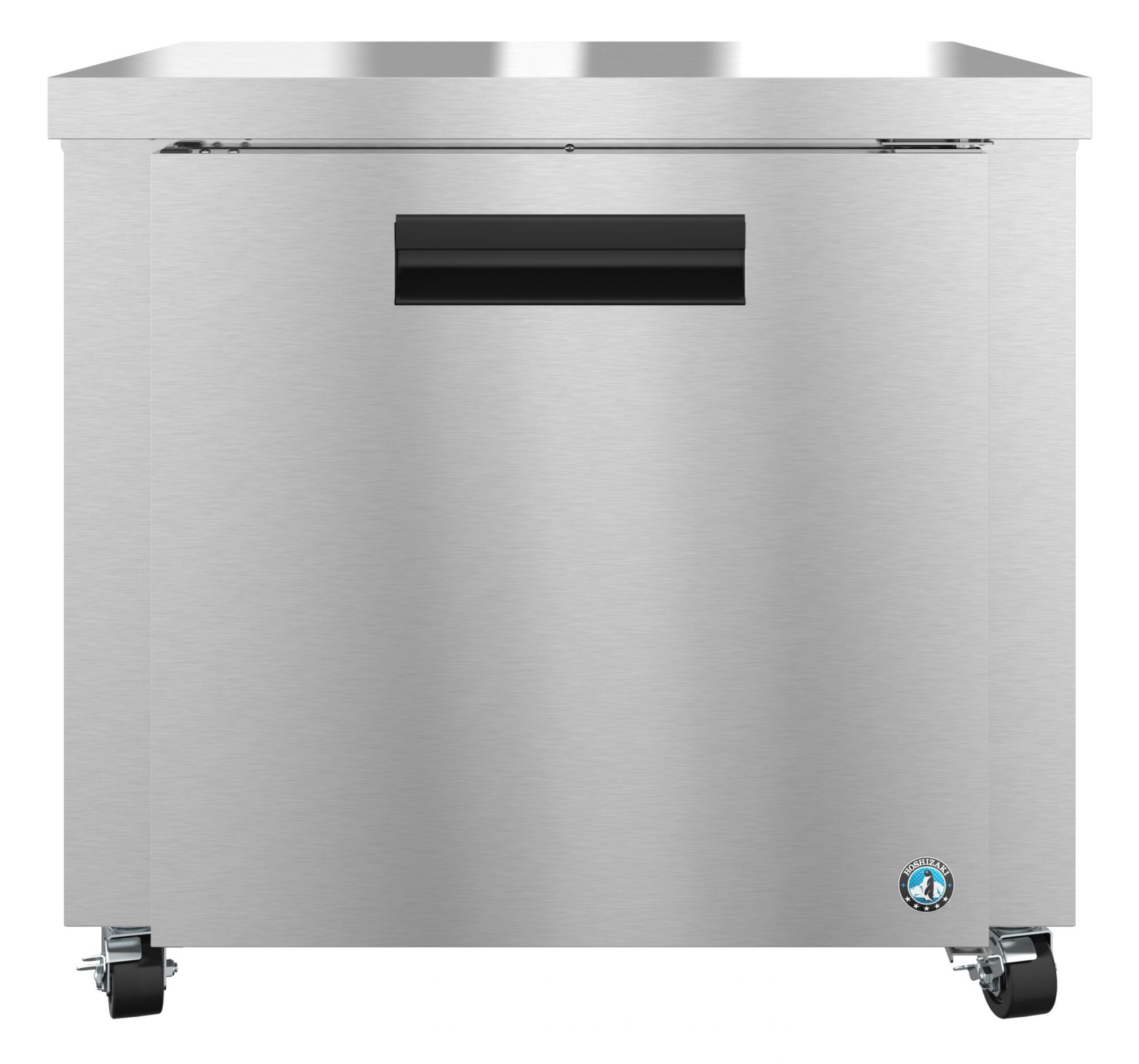

UR36A, Refrigerator, Single Section Undercounter, Stainless Door

REQUEST A QUOTE

  • Dimensions: 36″ W x 30″ D x 33.63″ H
  • Net capacity of 8.7 cubic feet
  • Innovative air distribution system distributes air evenly to maintain product temperature
  • Enamel coated evaporator coil for extended life
  • Stainless steel exterior (front, sides, top) and a stainless steel interior
  • Field reversible, spring assisted self closing door with stay open feature (no kit req’d)
  • Extruded aluminum flush mount door handle
  • (1) stainless steel door with ABS interior liner
  • Insulated with 2″ CFC free, foamed in place polyurethane
  • (1) epoxy coated wire shelf adjustable in 1/2″ increments on anodized aluminum supports
  • Engineered to maintain food safe temperatures in 100°F ambient conditions
  • R290 refrigerant
  • (4) 4″ Stem Casters (2 with brakes) are standard
  • Automatic off-cycle defrost
  • Options: Additional epoxy shelves, 2.25″ or 6″ casters, overshelves, cylinder lock (-01 models)
  • Nominal Compres. of 988 BTU/hr at 1/6 HP
  • 115v/60/1, 10 ft. cord and plug
  • Shipping Crate: 40.5″ L x 34″ D x 36.5″ H at 156 lbs
  • ENERGY STAR® qualified
  • Five Years compressor warranty, Three Years parts and labor warranty

Sales Literature

Price ListSales Catalog

Description

The UR36A Steelheart Series Undercounter single section refrigerator with a stainless door is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 8.7 cubic feet this efficient undercounter refrigerator and front air flow design is perfect for hot/tight kitchens. The UR36A is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The UR36A also includes (1) epoxy coated wire shelf adjustable in 1/2″ increments on anodized aluminum supports, (4) 4″ Stem Casters (2 with brakes) are standard, plus a field reversible, spring assisted self closing door with stay open feature (no kit req’d). Electrical consumption of 0.54 kWh/day at 2.4 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Options: Additional epoxy shelves, 2.25″ or 6″ casters, overshelves, cylinder lock (-01 models). The unit is ETL Sanitation Listed, ETL Safety (US & C) Listed, ENERGY STAR® Qualified and includes a Five Years compressor warranty / Three Years parts and labor warranty.

Additional information

Weight156 lbs
Dimensions36" W X 30" D X 33.63" H in
Height33.63" H
Width36" W
Depth30" D
Shipping Weight156 lbs
WarrantyValid in United States, Canada, Puerto Rico, & U.S. Territories. Contact factory for warranty in other countries.|Three Years: Parts & Labor warranty on entire machine.|Five Years: Parts warranty on Compressor.|
Certifications:ETL Sanitation Listed, ETL Safety (US & C) Listed, ENERGY STAR® Qualified
Energy Star® Qualified:Yes
Electrical Specs:Electrical Connection: 5 - 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 0.54 kwh/day, Amperage: 2.4, Max Fuse/HACR Breaker: 15 A
Plumbing Specs:
Utility Consumption:
Operating Limits:Ambient Temp Range: 45 - 100°F, Voltage Range: 104 - 126V, Control Setpoint Range: 32 - 52°F, Refrigerant: R290
