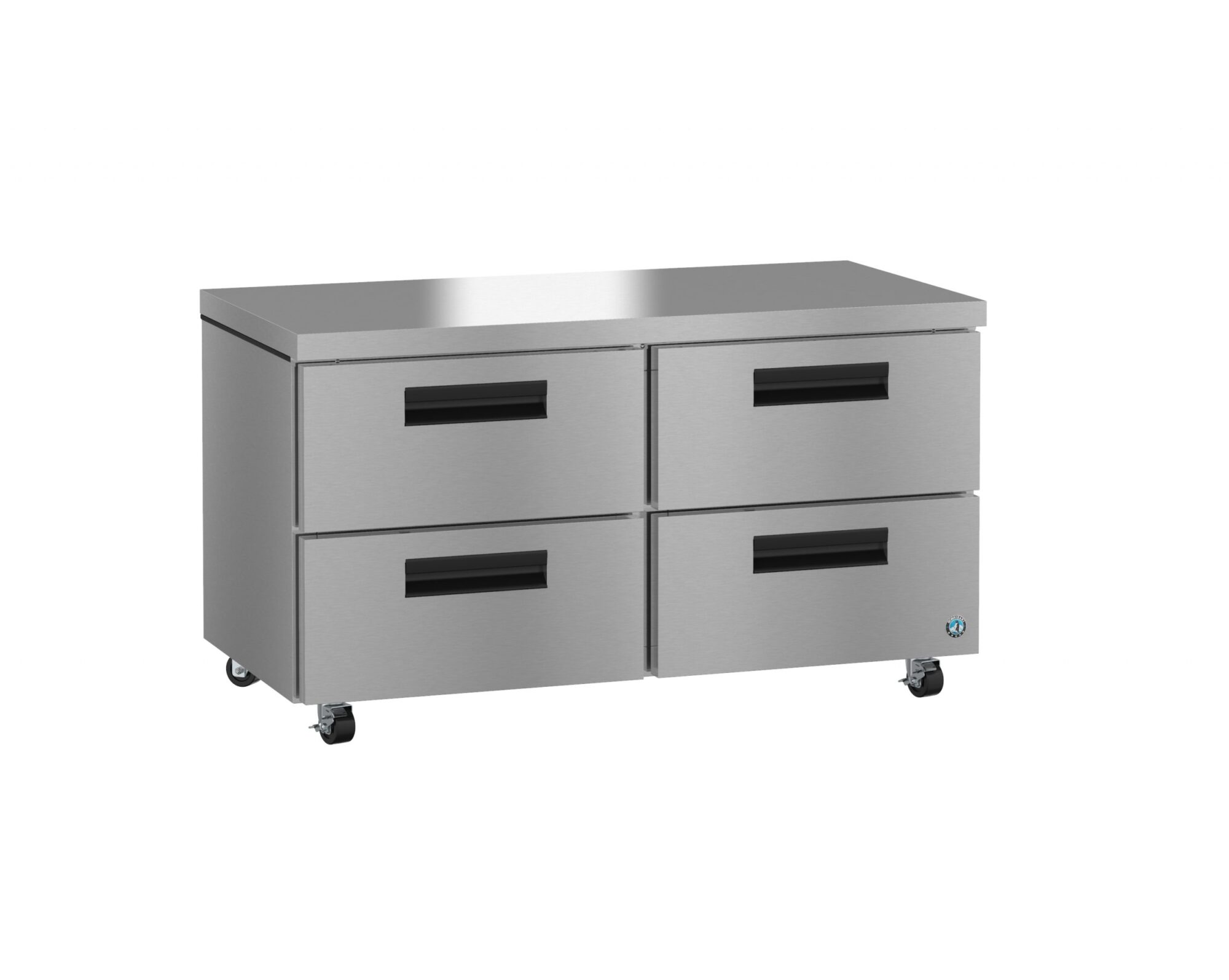

UR60A-D4, Refrigerator, Two Section Undercounter, Stainless Drawers

REQUEST A QUOTE

  • Dimensions: 60″ W x 30″ D x 33.63″ H
  • Net capacity of 15.38 cubic feet
  • Nominal Compres. of 1354 BTU/hr at 1/5 HP
  • Electrical consumption of 2.6 kWh/day, at 3.3 Amps on a 5 – 15P NEMA Plug
  • Drawer slides are constructed of 16 gauge stainless steel with acetal rollers
  • Drawers capacity: Top: (1) 12″ x 20″ full size and (2) 1/4 size pans, 4″ deep. Bottom: (1) 12″ x 20″ x 6″ deep pan (pans by others)
  • Extruded aluminum flush mount drawer handle
  • Magnetic drawer gasket is easily removable for cleaning
  • Stainless steel exterior drawer with stainless steel interior
  • Insulated with 2″ CFC free, foamed in place polyurethane
  • Stainless steel exterior front, sides and top with stainless steel interior
  • Engineered to maintain food safe temperatures in 100°F ambient conditions
  • R-290 refrigerant
  • Automatic “off-cycle” defrost cycle
  • Enamel coated evaporator coil for extended life
  • Includes 4 stainless steel drawers with 175 lbs dynamic load rating
  • Drawer frames are formed of 16 gauge stainless steel and securely fastened in the cabinet
  • Standard with (4) 4″ Stem Casters (2 with brakes)
  • Optional kits: 2.25″ or 6″ casters, drawer adapter bars
  • 115v/60/1, 8 ft. cord and plug
  • Shipping Crate: 34 “W x 62.5 “D x 36.5 “H at 308 lbs
  • ENERGY STAR® qualified
  • Five Years compressor warranty, Three Years parts and labor warranty

LIBRARY

Description

The UR60A-D4 Steelheart Series Undercounter Two Section Refrigerator with Stainless Drawers is an attractive addition in any kitchen. With a Net capacity of 15.38 cubic feet this front breathing Undercounter Refrigerator is perfect for tight spaces.
The UR60A-D4 is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean. The UR60A-D4 Includes 4 stainless steel drawers with 175 lbs dynamic load rating, each of its Drawers capacity: Top: (1) 12″ x 20″ full size and (2) 1/4 size pans, 4″ deep. Bottom: (1) 12″ x 20″ x 6″ deep pan (pans by others). Optional kits: 2.25″ or 6″ casters, drawer adapter bars. The unit is ISO 9001:14001, ETL Sanitation Listed, cETLus Listed, ENERGY STAR® Qualified and includes a Five Years compressor warranty / Three Years parts and labor warranty.

Additional information

Weight 308 lbs
Dimensions 60" W X 30" D X 33.63" H in
Height 33.63" H
Width 60" W
Depth 30" D
Shipping Weight 308 lbs
Warranty Valid in United States, Canada, Puerto Rico, & U.S. Territories. Contact factory for warranty in other countries.|Three Years: Parts & Labor warranty on entire machine.|Five Years: Parts warranty on Compressor.|
Certifications: ISO 9001:14001, ETL Sanitation Listed, cETLus Listed, ENERGY STAR® Qualified
Energy Star® Qualified: Yes
Electrical Specs: Electrical Connection: 5 - 15P NEMA, 115v/60/1, 8 ft. cord and plug, Energy Consumption: 2.6 kwh/day, Amperage: 3.3, Max Fuse/HACR Breaker: 15 A
Plumbing Specs:
Utility Consumption:
Operating Limits: Ambient Temp Range: 45 - 100°F, Voltage Range: 104 - 126V, Control Setpoint Range: 32 - 52°F, Refrigerant: R-290
