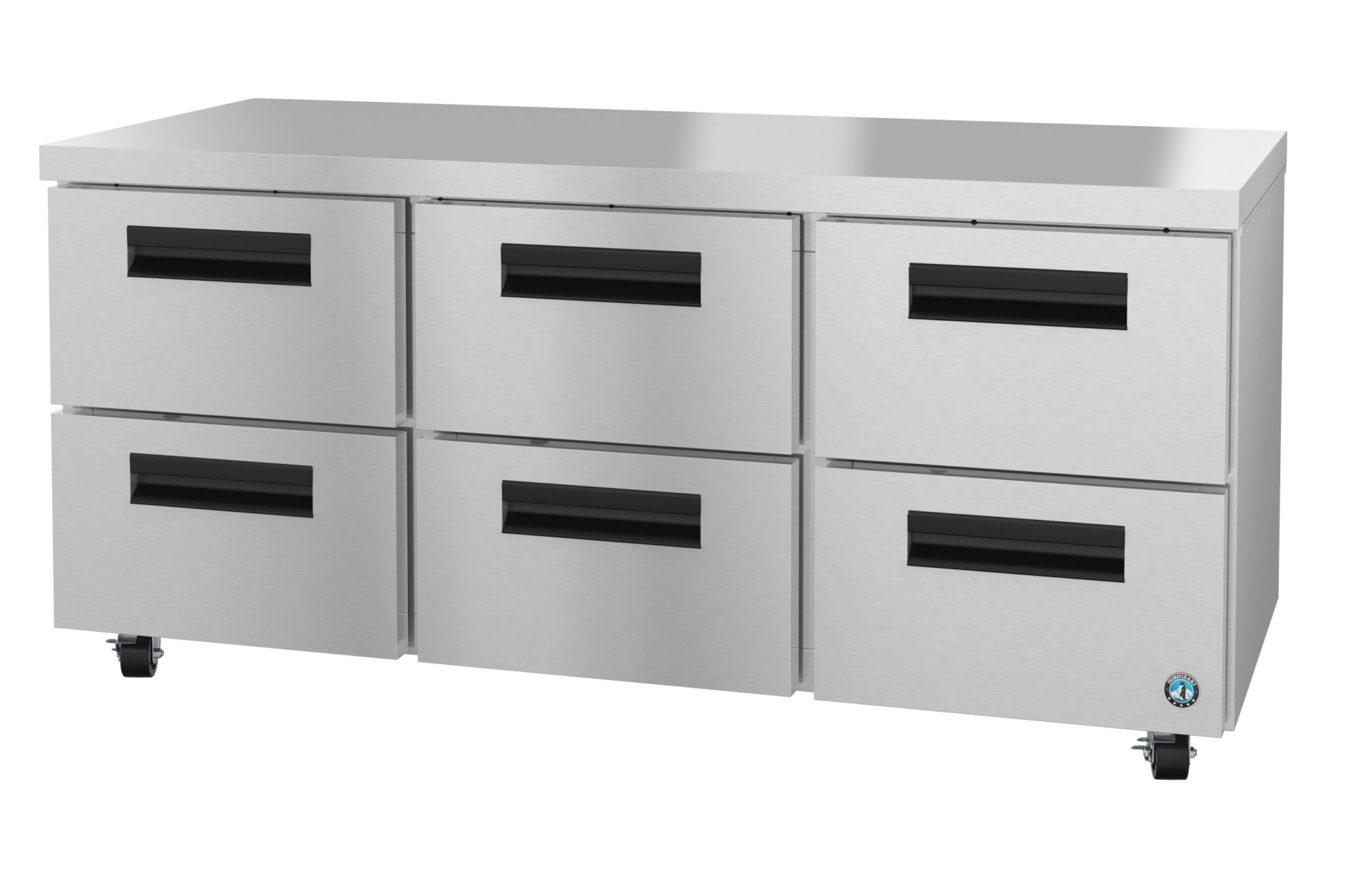

UR72A-D6, Refrigerator, Three Section Undercounter, Stainless Drawers

REQUEST A QUOTE

  • Dimensions: 72″ W x 30″ D x 33.63″ H
  • Net capacity of 18.63 cubic feet
  • Innovative air distribution system distributes air evenly to maintain product temperature
  • Enamel coated evaporator coil for extended life
  • Stainless steel exterior (front, sides, top) and a stainless steel interior
  • The drawer slides are constructed of 16 gauge stainless steel with durable acetal rollers
  • Extruded aluminum flush mount drawer handle
  • (6) stainless steel drawers, fully welded construction and securely fastened in the cabinet
  • Insulated with 2″ CFC free, foamed in place polyurethane
  • Drawers capacity: Top: (1) 1/2 size and (1) 1/3 size pans, 4″ deep. Bottom: (1) 1/2 size and (1) 1/3 size, 6″ deep pans (pans by others)
  • Engineered to maintain food safe temperatures in 100°F ambient conditions
  • R290 refrigerant
  • (4) 4″ Stem Casters (2 with brakes) are standard
  • Automatic off-cycle defrost
  • Optional kits: 2.25″ or 6″ casters, Epoxy wire shelf, Stainless steel back, Overshelves, Lock
  • Nominal Compres. of 1386 BTU/hr at 1/5 HP
  • 115v/60/1, 10 ft. cord and plug
  • Shipping Crate: 74.5″ L x 34″ D x 40.5″ H at 372 lbs
  • ENERGY STAR® qualified
  • Five Years compressor warranty, Three Years parts and labor warranty

Sales Literature

Price ListSales Catalog

Description

The UR72A-D6 Steelheart Series Undercounter three section refrigerator with stainless drawers is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 18.63 cubic feet this efficient undercounter refrigerator and front air flow design is perfect for hot/tight kitchens. The UR72A-D6 is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The UR72A-D6 also includes Drawers capacity: Top: (1) 1/2 size and (1) 1/3 size pans, 4″ deep. Bottom: (1) 1/2 size and (1) 1/3 size, 6″ deep pans (pans by others), (4) 4″ Stem Casters (2 with brakes) are standard, plus a the drawer slides are constructed of 16 gauge stainless steel with durable acetal rollers. Electrical consumption of 4.5 kWh/day at 4.2 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 2.25″ or 6″ casters, Epoxy wire shelf, Stainless steel back, Overshelves, Lock. The unit is ETL Sanitation Listed, ETL Safety (US & C) Listed, ENERGY STAR® Qualified and includes a Five Years compressor warranty / Three Years parts and labor warranty.

Additional information

Weight372 lbs
Dimensions72" W X 30" D X 33.63" H in
Height33.63" H
Width72" W
Depth30" D
Shipping Weight372 lbs
WarrantyValid in United States, Canada, Puerto Rico, & U.S. Territories. Contact factory for warranty in other countries.|Three Years: Parts & Labor warranty on entire machine.|Five Years: Parts warranty on Compressor.|
Certifications:ETL Sanitation Listed, ETL Safety (US & C) Listed, ENERGY STAR® Qualified
Energy Star® Qualified:Yes
Electrical Specs:Electrical Connection: 5 - 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 4.5 kwh/day, Amperage: 4.2, Max Fuse/HACR Breaker: 15 A
Plumbing Specs:
Utility Consumption:
Operating Limits:Ambient Temp Range: 45 - 100°F, Voltage Range: 104 - 126V, Control Setpoint Range: 32 - 52°F, Refrigerant: R290
