- Dimensions: 46-3/8″ W x 14-1/16″ D x 40-1/2″ H
- Remote condenser for KM Cubers ice makers
- Quiet operation
- Weather resistant cabinet for longer life
- Improved efficiency; Energy savings
- Allow 24″ clearance for best performance
- Single Phase, 115v/60/1
- R-404a refrigerant
- Compatible ice makers, sold separately: KM-2500SRH3
- Three Years: Parts & Labor warranty on entire unit.
- Five Years: Parts warranty on air-cooled condenser coil.

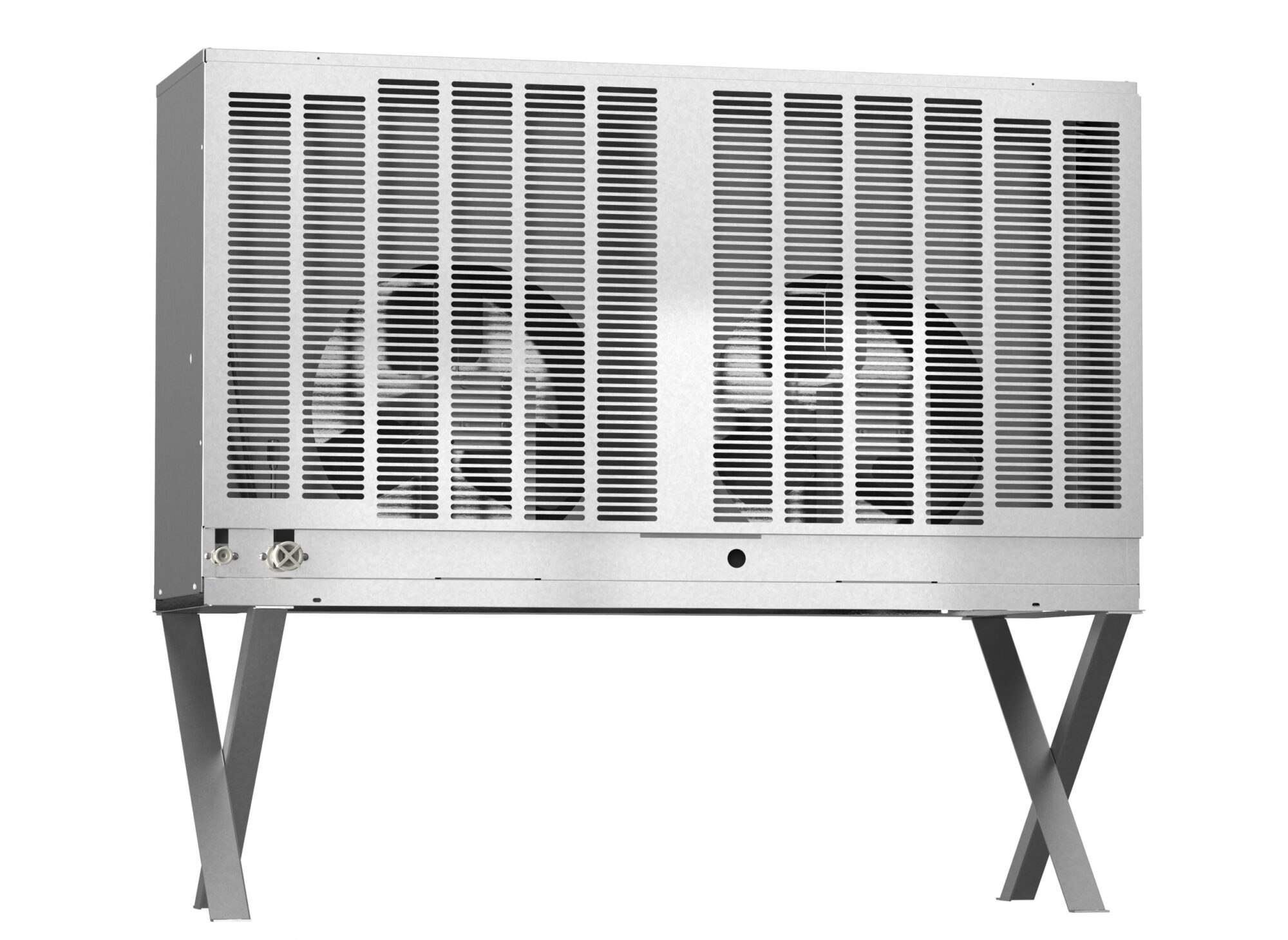

URC-23F, URC Series Remote Condenser
REQUEST A QUOTE
REQUEST A QUOTE
The URC-23F, URC Series Remote Condenser provides quiet, energy efficient operation that is designed to save money on energy costs and reduce excess heat in commercial kitchens. This Remote Condenser can be installed away from the ice maker using Pre-charged refrigerant lines (20′, 35′, 55′), tubing kits sold separately. Contact Tech Support if installations exceed these distances.
The URC-23F Remote Condenser operates on Single Phase, 115v/60/1, and R-404a refrigerant. Compatible ice makers, sold separately: KM-2500SRH3. The unit is ISO 9001:14001, UL Listed, Manufactured in the USA and includes a Three Years: Parts & Labor warranty on entire unit. / Five Years: Parts warranty on air-cooled condenser coil.
|Weight||158 lbs lbs|
|Dimensions||14-1/16" D x 46-3/8" W x 40-1/2" H in|
ISO 9001:14001, UL Listed, Manufactured in the USA
|Energy Star® Qualified:||
Ice Maker Connection: Single Phase, 115v/60/1
Dimensions: 46-3/8″ W x 14-1/16″ D x 40-1/2″ H, Shipping Weight: 158 lbs
Pre-Charged Line Kits:, 20′ Length: R404-20610, 35′ Length: R404-35610, 55” Length: R404-55610
Ambient Temp Range: -22 – 122°F, Voltage Range: 104 – 127V, Refrigerant: R-404A
250 lbs Max Ice Capacity
