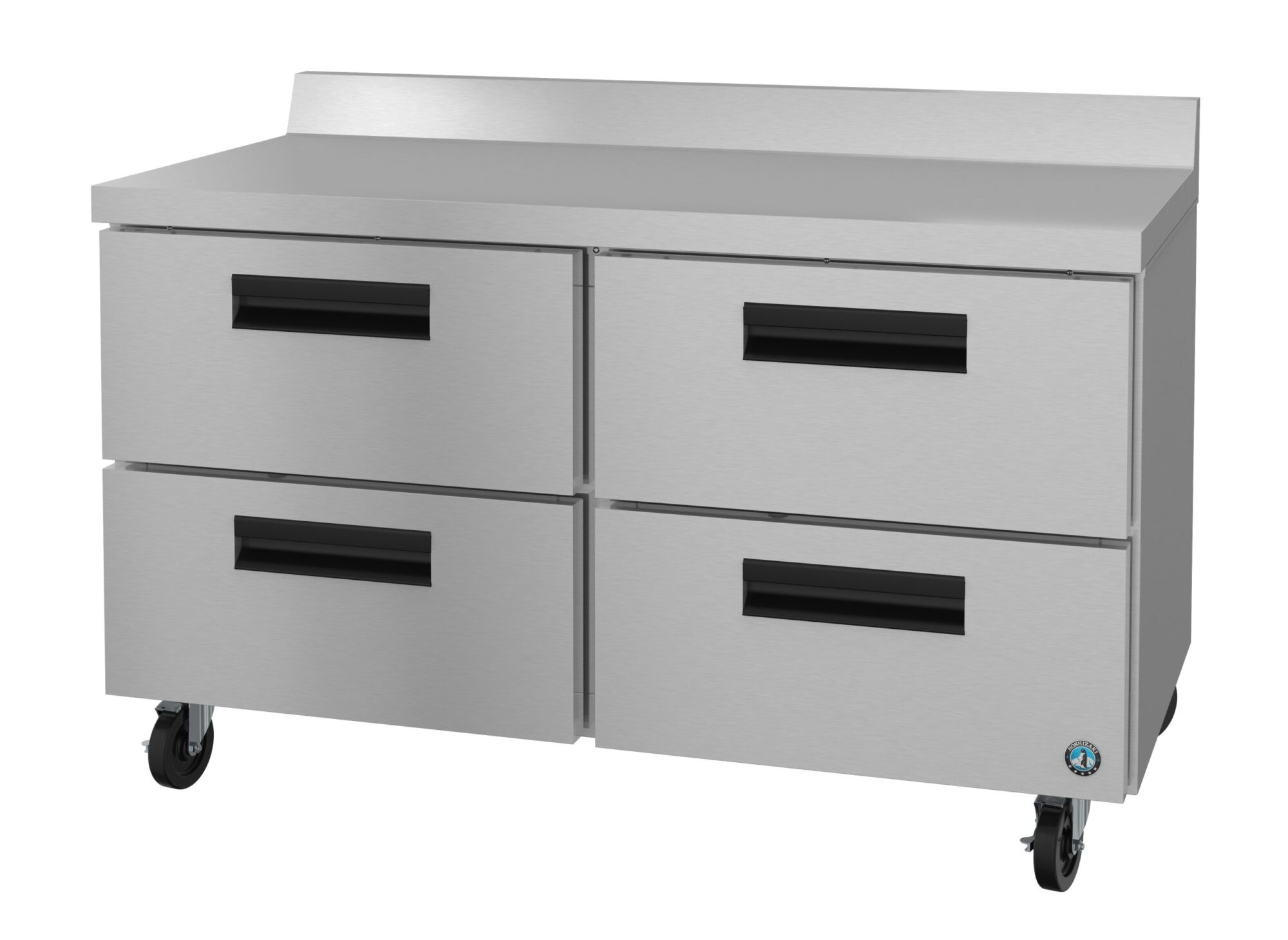

WF48A-D4, Freezer, Two Section Worktop, Stainless Drawers

REQUEST A QUOTE

  • Dimensions: 48″ W x 30″ D x 40″ H
  • Net capacity of 12 cubic feet
  • Innovative air distribution system distributes air evenly to maintain product temperature
  • Enamel coated evaporator coil for extended life
  • Stainless steel exterior (front, sides, top) and a stainless steel interior
  • The drawer slides are constructed of 16 gauge stainless steel with durable acetal rollers
  • Extruded aluminum flush mount drawer handle
  • (4) stainless steel drawers, fully welded construction and securely fastened in the cabinet
  • Insulated with 2″ CFC free, foamed in place polyurethane
  • Drawers capacity: Top: (1) 1/2 size and (1) 1/3 size pans, 4″ deep. Bottom: (1) 1/2 size and (1) 1/3 size, 6″ deep pans (pans by others)
  • Engineered to maintain food safe temperatures in 100°F ambient conditions
  • R290 refrigerant
  • (4) 6″ Stem Casters (2 with brakes) are standard
  • ?
  • Optional kits: 2.25″ or 4″ casters, Epoxy wire shelf, Stainless steel back, Overshelves, Lock
  • Nominal Compres. of 1360 BTU/hr at 1/3 HP
  • 115v/60/1, 10 ft. cord and plug
  • Shipping Crate: 52.5″ L x 34″ D x 40.5″ H at 263 lbs
  • Automatic time-initiated heated defrost
  • Five Years compressor warranty, Three Years parts and labor warranty

Sales Literature

Price ListSales Catalog

Description

The WF48A-D4 Steelheart Series Worktop two section freezer with stainless drawers is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 12 cubic feet this efficient worktop freezer and front air flow design is perfect for hot/tight kitchens. The WF48A-D4 is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The WF48A-D4 also includes Drawers capacity: Top: (1) 1/2 size and (1) 1/3 size pans, 4″ deep. Bottom: (1) 1/2 size and (1) 1/3 size, 6″ deep pans (pans by others), (4) 6″ Stem Casters (2 with brakes) are standard, plus a the drawer slides are constructed of 16 gauge stainless steel with durable acetal rollers. Electrical consumption of 6.08 kWh/day at 5.9 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 2.25″ or 4″ casters, Epoxy wire shelf, Stainless steel back, Overshelves, Lock. The unit is ETL Sanitation Listed, ETL Safety (US & C) Listed and includes a Five Years compressor warranty / Three Years parts and labor warranty.

Additional information

Weight263 lbs
Dimensions48" W X 30" D X 40" H in
Height40" H
Width48" W
Depth30" D
Shipping Weight263 lbs
WarrantyValid in United States, Canada, Puerto Rico, & U.S. Territories. Contact factory for warranty in other countries.|Three Years: Parts & Labor warranty on entire machine.|Five Years: Parts warranty on Compressor.|
Certifications:ETL Sanitation Listed, ETL Safety (US & C) Listed
Energy Star® Qualified:No
Electrical Specs:Electrical Connection: 5 - 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 6.08 kwh/day, Amperage: 5.9, Max Fuse/HACR Breaker: 15 A
Plumbing Specs:
Utility Consumption:
Operating Limits:Ambient Temp Range: 45 - 100°F, Voltage Range: 104 - 126V, Control Setpoint Range: -10 - +10°F, Refrigerant: R290
