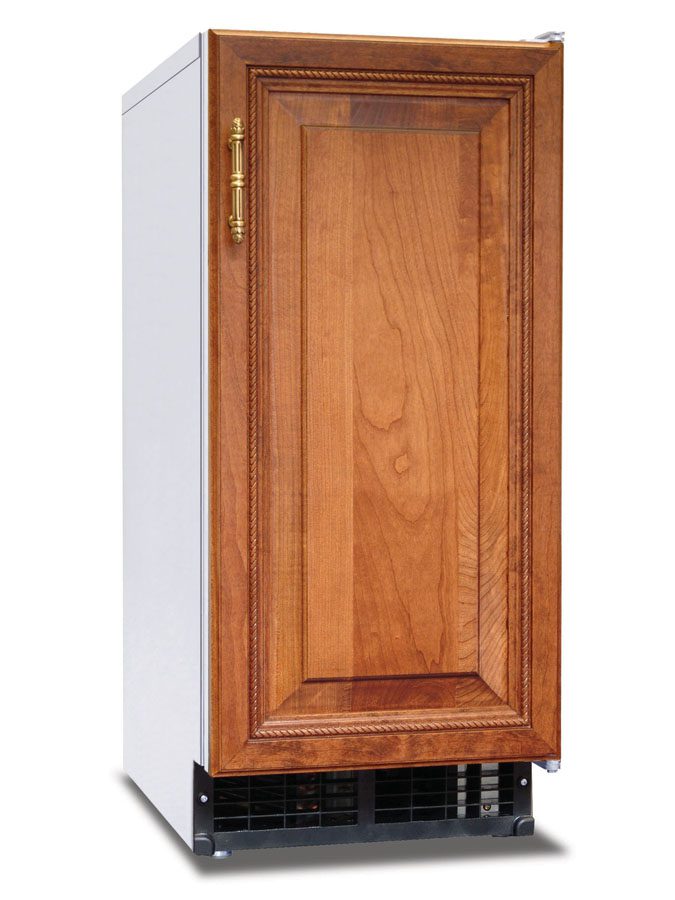

AM-50BAE-DS Top Hat Cuber Ice Machine, Air-cooled, Custom Cabinet Ready
14″ W X 22″ D X 33″ H
Parts and Service
Electrical Specs
Single phase, 115v/60/1 6 ft cord with NEMA 5-15 Plug, Amperage: 3.8, Max Fuse/HACR Breaker: 15 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 95°F, Water Pressure: 7 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: BTU/hr, Refrigerant Charge: R-134a, (4.2 oz. / 120 g)
Plumbing Specs
1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 1/2″ FPT Outlet, Minimum 1/2″ Nominal ID Drain Hard Pipe or Equivalent
Shipping Weight
115
Utility Consumption
16.8 kWh per 100 lbs @ 90/70, 71 gal of Potable Water per 100 lbs @ 90/70
Warranty
Two Years: Parts & Labor warranty on entire machine.
Overview and Features
This compact undercounter Top Hat Icemaker is the perfect addition to any hotel suite, office breakroom, or high end kitchen. The AM-50BAE-DS is capable of producing approximately 55 lbs of Top Hat style ice cubes per day, and the built-in storage bin will hold up to 22 lbs* of ice at a time. The Air-cooled design also features a Front in, front out airflow system that eliminates the need for side and rear clearance. Perfect for fitting into tight spaces. Drain pump not included.
[fusion_button link=”https://hoshizakiamerica.com/product/AM-50BAJ-DS/” color=”blue” size=”medium” type=”3d” shape=”square” target=”_self” title=”View New Model” gradient_colors=”|” gradient_hover_colors=”|” accent_color=”” accent_hover_color=”#5aabd6″ bevel_color=”” border_width=”1px” shadow=”yes” icon=”fa-exclamation-circle” icon_divider=”no” icon_position=”left” modal=”” animation_type=”0″ animation_direction=”down” animation_speed=”0.1″ class=”” id=””]REPLACED BY AM-50BAJ-DS[/fusion_button]
- Dimensions: 14-7/8″ W x 22-5/8″ D x 33-1/2″ H
- Up to 55 lbs of ice produced per 24 hours
- Up to 22 lbs of built-in storage capacity (ft3)
- Produces top hat ice cubes
- Undercounter design is less than 32″ Tall, ADA compliant
- Front in, front out airflow
- UL approved for outdoor use
- Easily disassembled water circuit for easy cleaning
- (-DS) Accommodates custom cabinet door (not included), DS door reversal kit (HS-0229)
- R-134a refrigerant (4.2 oz. / 120 g)
- Heat Rejection: BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 95°F
- Water pressure: 7 – 113psig
- Voltage range: 104 – 127V
- 3.8 amps (15 Amp Max fuse)
- 16.8 kwh/100 lbs.@ 90/70
- Single phase, 115v/60/1 6 ft cord with NEMA 5-15 plug
- Clean ice and easy maintenance lead to longer unit life span
- Two Years: Parts & Labor warranty on entire machine.
- One Year: Parts & Labor warranty on optional HS-5061 Drain Pump Assembly.
