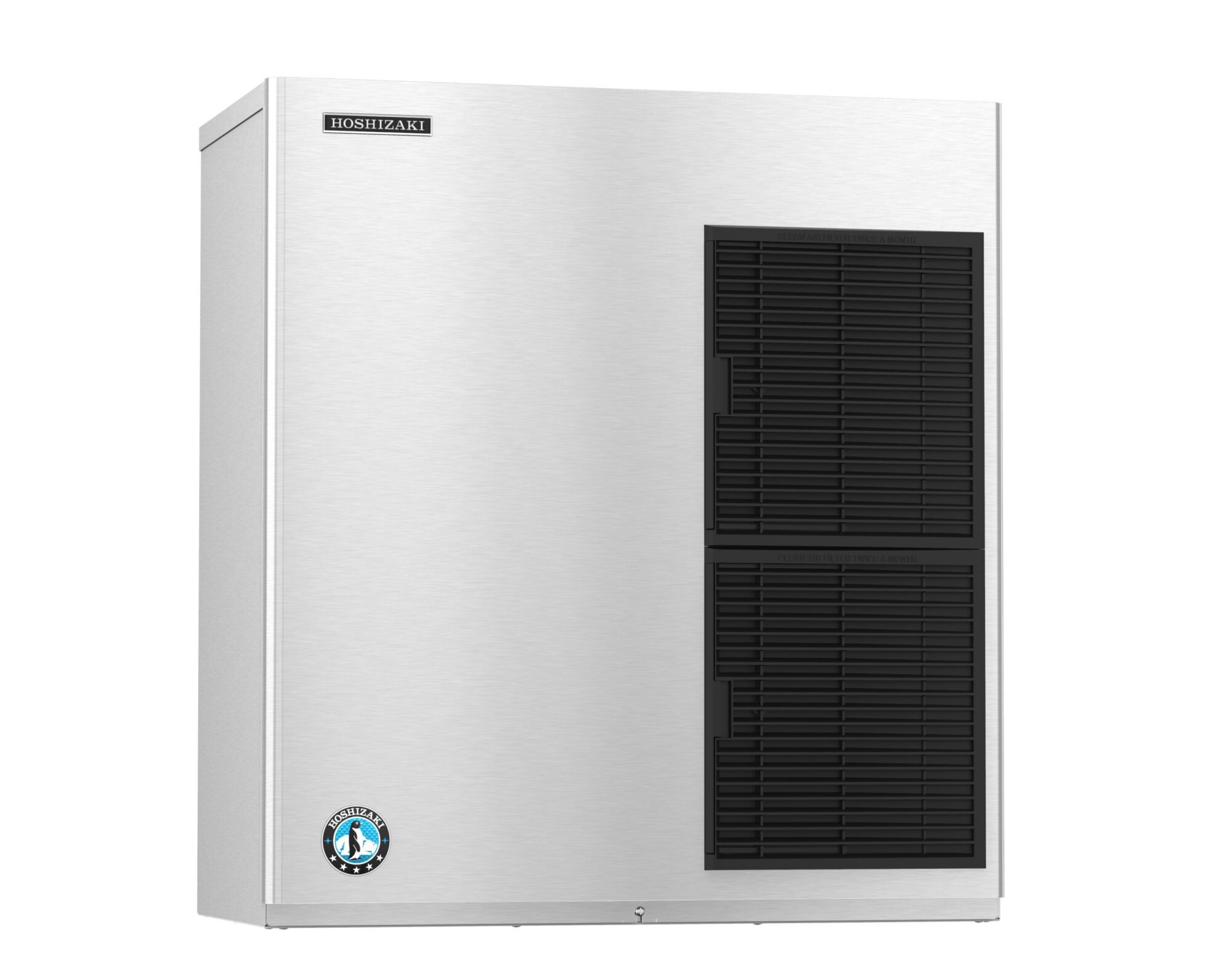

FS-1500MLJ-C with SRC-14J, Cubelet Icemaker, Remote-cooled, Serenity Series / FS-1500MLJ-C with SRC-14J, Cubelet Icemaker, Remote-cooled, Serenity Series

FS-1500MLJ-C with SRC-14J, Cubelet Icemaker, Remote-cooled, Serenity Series

30″ W X 16″ D X 33″ H
Request a Quote Find a Distributor
Parts and Service
Downloads
Electrical Specs
Single phase, See Remote Condenser, *115V supply for the FS Icemaker is supplied from the 230V SRC Remote Condenser, Amperage: 10.1, Max Fuse/HACR Breaker: 20 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 15300 BTU/hr, Refrigerant Charge: R-404A, (3.5 oz. / 100 g)
Plumbing Specs
1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight
222
Utility Consumption
4.75 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Warranty
Three Years: Parts & Labor warranty on entire machine.

Overview and Features

The FS-1500MLJ-C is capable of producing approximately 1386 lbs of cubelet (nugget-style) ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat. This Remote-cooled with SRC-14J icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The FS-1500MLJ-C requires a Single phase, See Remote Condenser, *115V supply for the FS Icemaker is supplied from the 230V SRC Remote Condenser electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: Beverage Dispensers. Please consult the Specification Sheet for additional details.

[fusion_button link=”https://hoshizakiamerica.com/product/FS-1501MLJ-C/” color=”blue” size=”medium” type=”3d” shape=”square” target=”_self” title=”View New Model” gradient_colors=”|” gradient_hover_colors=”|” accent_color=”” accent_hover_color=”#5aabd6″ bevel_color=”” border_width=”1px” shadow=”yes” icon=”fa-exclamation-circle” icon_divider=”no” icon_position=”left” modal=”” animation_type=”0″ animation_direction=”down” animation_speed=”0.1″ class=”” id=””]REPLACED BY FS-1501MLJ-C[/fusion_button]

  • Dimensions: 30″ W x 16-1/2″ D x 33″ H
  • Up to 1386 lbs of ice produced per 24 hours
  • Mount 2 units side-by-side for 2x the ice production
  • Produces medium cubelet nugget-style ice
  • Durable stainless steel exterior
  • Compatible bins & dispensers, sold separately: Beverage Dispensers
  • Ice removed from evaporator after every shut down cycle
  • Advanced CleanCycle24™ design
  • Remote cooled models reduces heat in the kitchen and minimizes noise
  • R-404A refrigerant (3.5 oz. / 100 g)
  • Heat Rejection:15300 BTU/hr
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 104 – 127V
  • 10.1 amps (20 Amp Max fuse)
  • 4.75 kwh/100 lbs.@ 90/70
  • Single phase, See Remote Condenser, *115V supply for the FS Icemaker is supplied from the 230V SRC Remote Condenser
  • Clean ice and easy maintenance lead to longer unit life span
  • Three Years: Parts & Labor warranty on entire machine.
  • Five Years: Parts warranty on Compressor, air-cooled condenser coil.
