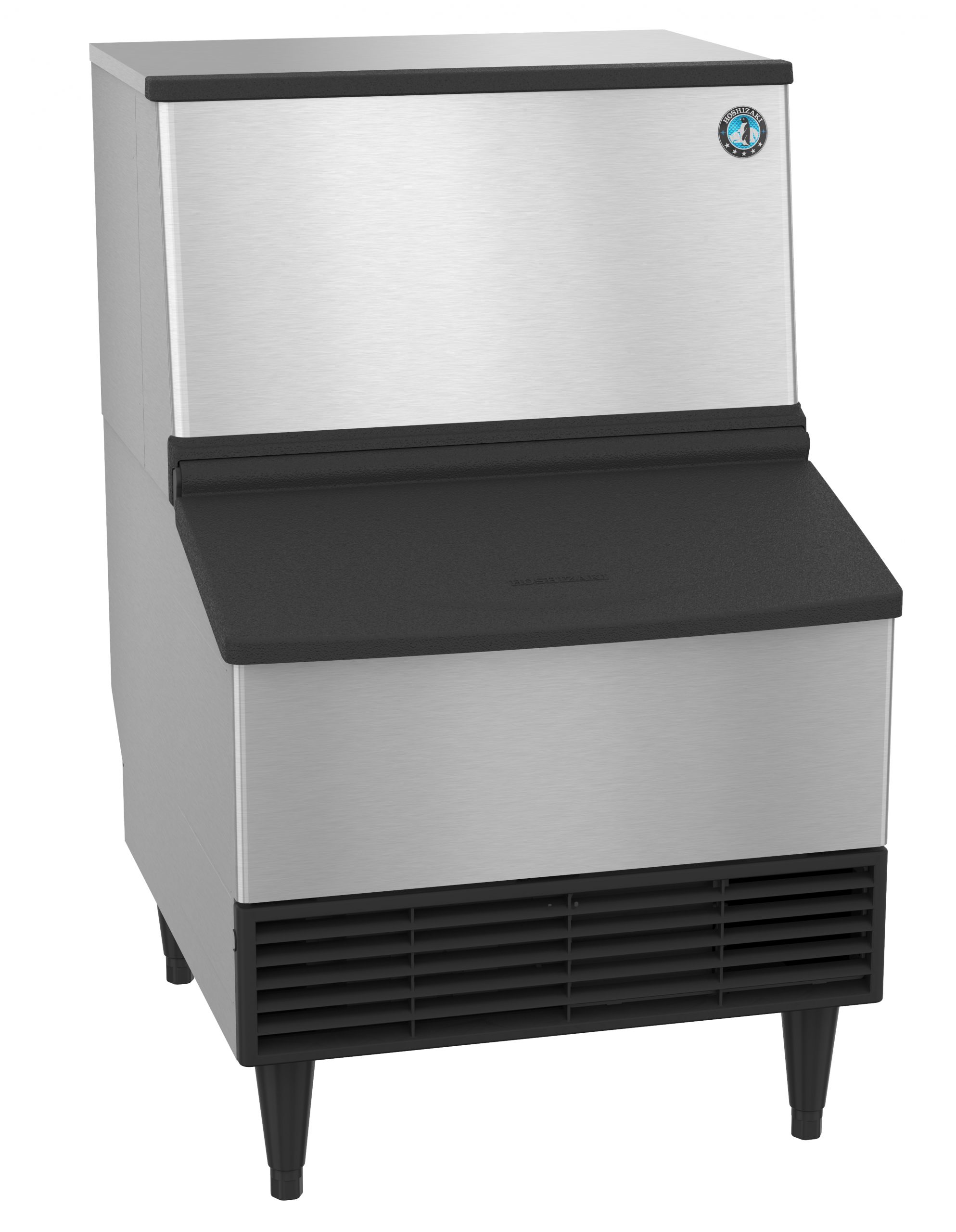

KM-201BAH Crescent Cuber Icemaker, Air-cooled, Built in Storage Bin
24″ W X 28″ D X 39″ H
Parts and Service
Electrical Specs
Single phase, 115v/60/1 6 ft cord with NEMA 5-15 Plug, Amperage: 6.1, Max Fuse/HACR Breaker: 15 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 3450 BTU/hr, Refrigerant Charge: R-404A, (12.0 oz. / 340 g)
Plumbing Specs
1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight
177
Utility Consumption
7.5 kWh per 100 lbs @ 90/70, 22 gal of Potable Water per 100 lbs @ 90/70
Warranty
Five Years: Parts warranty on Compressor, air-cooled condenser coil. Three Years: Parts & Labor warranty on entire machine.
Overview and Features
The KM-201BAH is capable of producing approximately 201 lbs of crescent cubed ice. This Undercounter Air-cooled, Self Contained, Built in Storage Bin icemaker stores up to 80 lbs of ice*, which makes it ideal for small bars, hotel lobbies, and office break rooms. It features the CycleSaver™ design and includes the EverCheck™ alert system making the unit simple to maintain. The KM-201BAH requires a Single phase, 115v/60/1, 6 ft cord with NEMA 5-15 plug electrical connection. Front in, front out airflow. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.
[fusion_button link=”https://hoshizakiamerica.com/product/KM-230BAJ/” color=”blue” size=”medium” type=”3d” shape=”square” target=”_self” title=”View New Model” gradient_colors=”|” gradient_hover_colors=”|” accent_color=”” accent_hover_color=”#5aabd6″ bevel_color=”” border_width=”1px” shadow=”yes” icon=”fa-exclamation-circle” icon_divider=”no” icon_position=”left” modal=”” animation_type=”0″ animation_direction=”down” animation_speed=”0.1″ class=”” id=””]REPLACED BY KM-230BAJ[/fusion_button]
- Dimensions: 24″ W x 28″ D x 39″ H
- Up to 201 lbs of ice produced per 24 hours
- Up to 80 lbs of built-in storage capacity (2.7ft3)
- Produces crescent shaped ice cubes
- Durable stainless steel exterior, opening is ADA compliant
- Front in, front out airflow
- EverCheck™ alert system
- CycleSaver™ design
- Ice bin opening is ADA compliant
- R-404A refrigerant (12.0 oz. / 340 g)
- Heat Rejection:3450 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 6.1 amps (15 Amp Max fuse)
- 7.5 kwh/100 lbs.@ 90/70
- Single phase, 115v/60/1, 6 ft cord with NEMA 5-15 plug
- Clean ice and easy maintenance lead to longer unit life span
- Three Years: Parts & Labor warranty on entire machine.
- Five Years: Parts & Labor warranty on evaporator.
