KM-2600SRJ3 with URC-26J, Crescent Cuber Icemaker, Remote-cooled, 3 Phase / KM-2600SRJ3 with URC-26J, Crescent Cuber Icemaker, Remote-cooled, 3 Phase

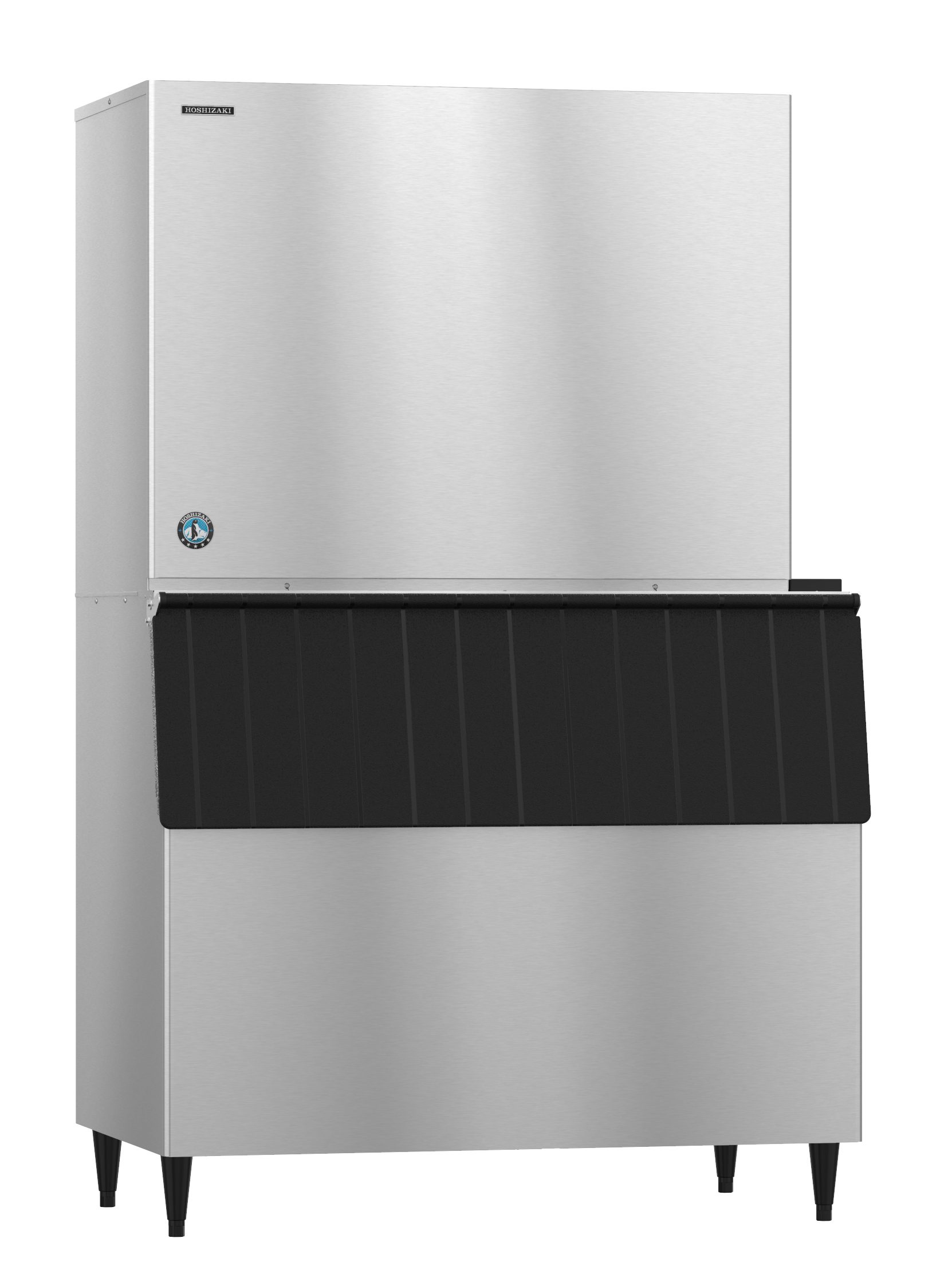

KM-2600SRJ3 with URC-26J, Crescent Cuber Icemaker, Remote-cooled, 3 Phase

48″ W X 27″ D X 36″ H
Request a Quote Find a Distributor
Parts and Service
Downloads
Electrical Specs
Three phase, 208-230v/60/3 , Amperage: 20.6, Max Fuse/HACR Breaker: 30 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Heat Rejection: BTU/hr, Refrigerant Charge: R-404A, (19 lbs. 13.5 oz. / 9000 g
Plumbing Specs
1/2″ FPT Inlet, Minimum 3/8″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Drain Hard Pipe or Equivalent
Shipping Weight
415
Utility Consumption
3.61 kWh per 100 lbs @ 90/70, 16 gal of Potable Water per 100 lbs @ 90/70
Warranty
Five Years: Parts warranty on Compressor, air-cooled condenser coil. Three Years: Parts & Labor warranty on entire machine.

Overview and Features

The KM-2600SRJ3 is capable of producing approximately 2617 lbs of Crescent Cube style ice cubes per day, and the built-in dispensing system holds up to lbs of insulated storage to ensure you always have enough ice on hand! This commercial Remote-cooled icemaker is the only one-piece dispenser design on the market! This makes it easy to install and service, and a quiet operating system makes it ideal for use in hotels and similar applications. EverCheck™ alert system. This sanitary icemaker/dispenser features a user-friendly dispensing mechanism that allows clean, individual, crescent ice cubes to be dispensed with a simple push of a button. This model features CycleSaver™ design and is ENERGY STAR® qualified. The KM-2600SRJ3 requires a Three phase, 208-230v/60/3 electrical connection and comes with a cord and plug. Please consult the Specification Sheet for additional details.

[fusion_button link=”https://hoshizakiamerica.com/product/KM-2600SRJZ3/” color=”blue” size=”medium” type=”3d” shape=”square” target=”_self” title=”View New Model” gradient_colors=”|” gradient_hover_colors=”|” accent_color=”” accent_hover_color=”#5aabd6″ bevel_color=”” border_width=”1px” shadow=”yes” icon=”fa-exclamation-circle” icon_divider=”no” icon_position=”left” modal=”” animation_type=”0″ animation_direction=”down” animation_speed=”0.1″ class=”” id=””]REPLACED BY KM-2600SRJZ3[/fusion_button]

  • Dimensions: 48″ W x 27-3/8″ D x 36-7/16″ H
  • Up to 2617 lbs of ice produced per 24 hours
  • Stack 2 units for 2x the ice production
  • Produces crescent shaped ice cubes
  • Durable stainless steel exterior
  • Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650
  • EverCheck™ alert system
  • CycleSaver™ design
  • R-404A refrigerant (19 lbs. 13.5 oz. / 9000 g)
  • Heat Rejection: BTU/hr
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 187 – 253V
  • 20.6 amps (30 Amp Max fuse)
  • 3.61 kwh/100 lbs.@ 90/70
  • Three phase, 208-230v/60/3
  • ENERGY STAR® qualified
  • Three Years: Parts & Labor warranty on entire machine.
  • Five Years: Parts & Labor warranty on evaporator.
