PTR2SSE-FSFS, Refrigerator, Two Section Pass Thru Upright, Full Stainless Doors with Lock / PTR2SSE-FSFS, Refrigerator, Two Section Pass Thru Upright, Full Stainless Doors with Lock

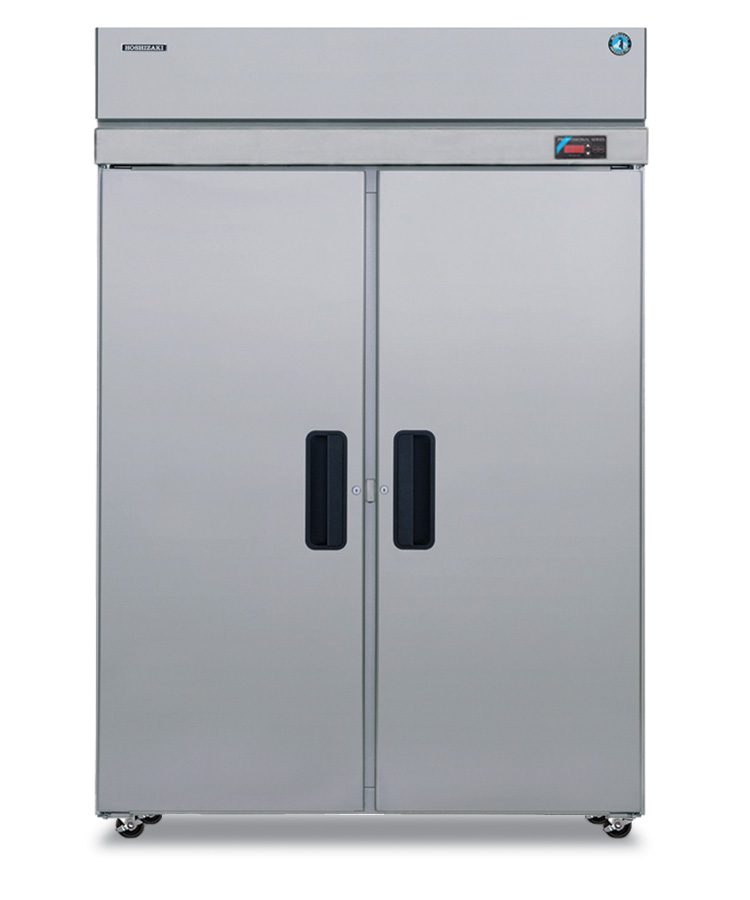

PTR2SSE-FSFS Refrigerator, Two Section Pass Thru Upright, Full Stainless Doors with Lock

55″ W X 35″ D X 82″ H
Request a Quote Find a Distributor
Parts and Service
Downloads
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 3.9 kwh/day, Amperage: 5.9, Max Fuse/HACR Breaker: 15 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 36 – 50°F, , Refrigerant: R-134A
Refrigeration Data
Nominal Compres. of 2085 BTU/hr at 1/2 HP, Heat Rejection: 1336 BTU/hr
Shipping Weight
700
Storage Specs
Nominal Storage Capacity: 51.3ft3, Interior Storage Capacity: 51.3ft3, Door Opening: 21.75″ W x 59.25″ H , Depth with Door fully extended: 85.9″ D, Shelves Included: 6
Warranty
Three Years: Parts & Labor warranty on entire machine.

Overview and Features

The PTR2SSE-FSFS Professional Series Pass Thru Two Section Refrigerator with a Full Stainless Doors and Flush mount door handles is perfect for any professional. The reliable 1/2 HP motor that powers the compressor in the top of this unit provides the cabinet with a continuous stream of cool air, ensuring a steady constant temperature. The PTR2SSE-FSFS frame is composed of stainless steel, a material that resists the random damage normal in a commercial kitchen or business. Plus, it is easy to clean. The PTR2SSE-FSFS Includes 6 epoxy coated wire coated shelves, and comes Standard with (4) 4″ HD Casters (2 with brakes), it features Spring assisted self closing lockable doors, with stay open feature (field reversible with optional kit). The unit is NSF and includes a Five Years compressor warranty / Three Years parts and labor warranty.

[fusion_button link=”https://hoshizakiamerica.com/product/PT2A-FS-FS/” color=”blue” size=”medium” type=”3d” shape=”square” target=”_self” title=”View New Model” gradient_colors=”|” gradient_hover_colors=”|” accent_color=”” accent_hover_color=”#5aabd6″ bevel_color=”” border_width=”1px” shadow=”yes” icon=”fa-exclamation-circle” icon_divider=”no” icon_position=”left” modal=”” animation_type=”0″ animation_direction=”down” animation_speed=”0.1″ class=”” id=””]REPLACED BY PT2A-FS-FS[/fusion_button]

  • Dimensions: 55″ W x 35.9″ D x 82.5″ H
  • Net capacity of 51.3 cubic feet
  • Nominal Compres. of 2085 BTU/hr at 1/2 HP
  • Electrical consumption of 3.9 kWh/day at 5.9 Amps, 10 ft long cord with a 5 – 15P NEMA plug
  • Exclusive “stepped” door design to protect recessed door gasket
  • Spring assisted self closing lockable doors, with stay open feature (field reversible with optional kit)
  • Flush mount door handles
  • Innovative Variable Speed Compressor with “adaptive control” technology
  • Energy efficient thermostatic expansion valve self contained refrigeration system
  • Insulated with 2 3/8″ CFC free, foamed in place polyurethane
  • Stainless steel interior and exterior
  • EverCheck digital control system with audio and visual alarms
  • R-134a refrigerant
  • Dual door frame heaters with energy saving on/off switch
  • Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
  • Includes 6 epoxy coated wire coated shelves
  • Epoxy coated wire shelves adjustable in 1″ increments on stainless steel supports
  • Standard with (4) 4″ HD Casters (2 with brakes)
  • Unique “ducted” air distribution system
  • 115v/60/1, 10 ft. cord and plug
  • Shipping Crate: 59″ L x 39″ D x 85″ H at 700 lbs
  • Energy efficient automatic hot gas condensate evaporator
  • Five Years compressor warranty, Three Years parts and labor warranty
