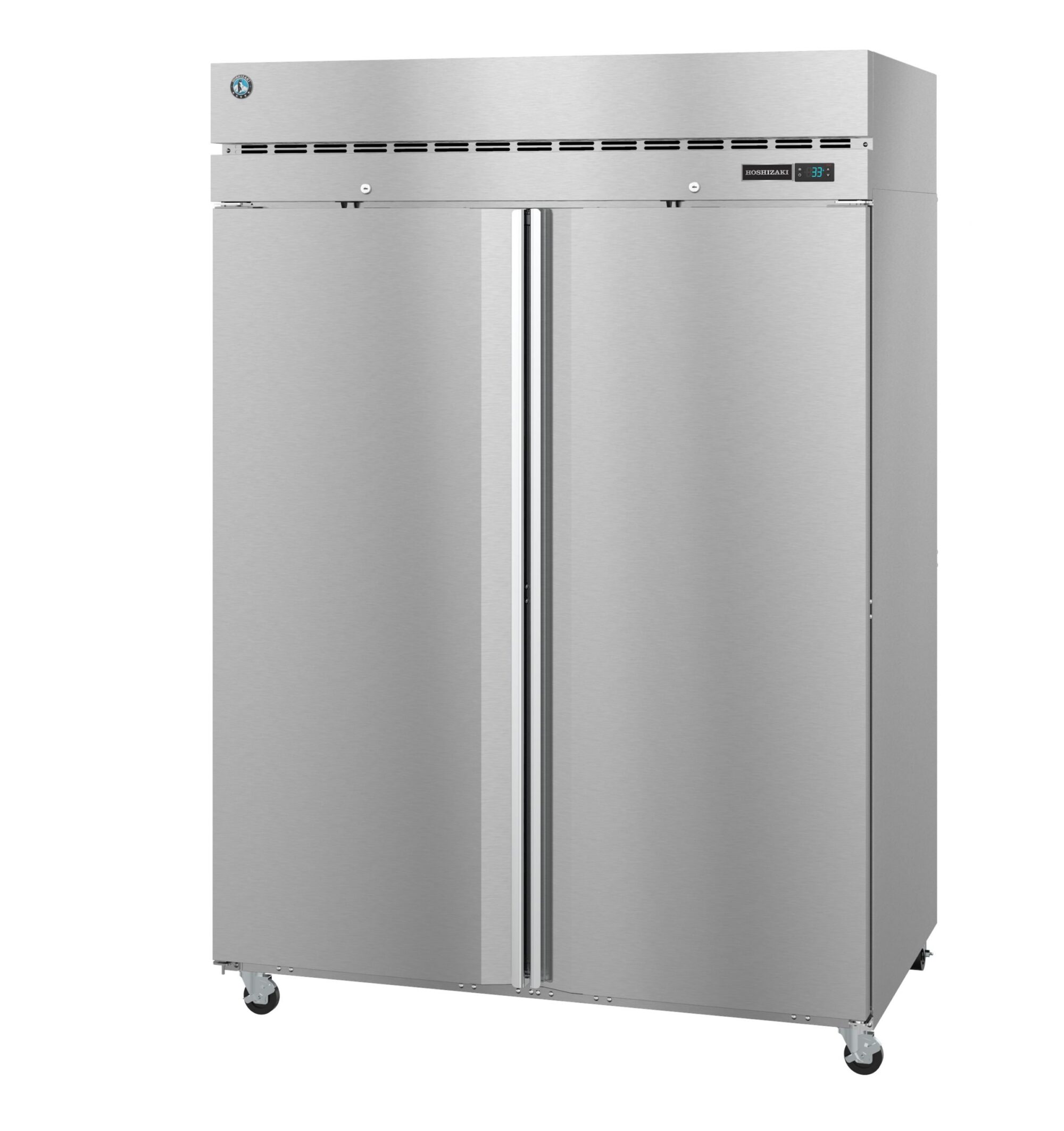

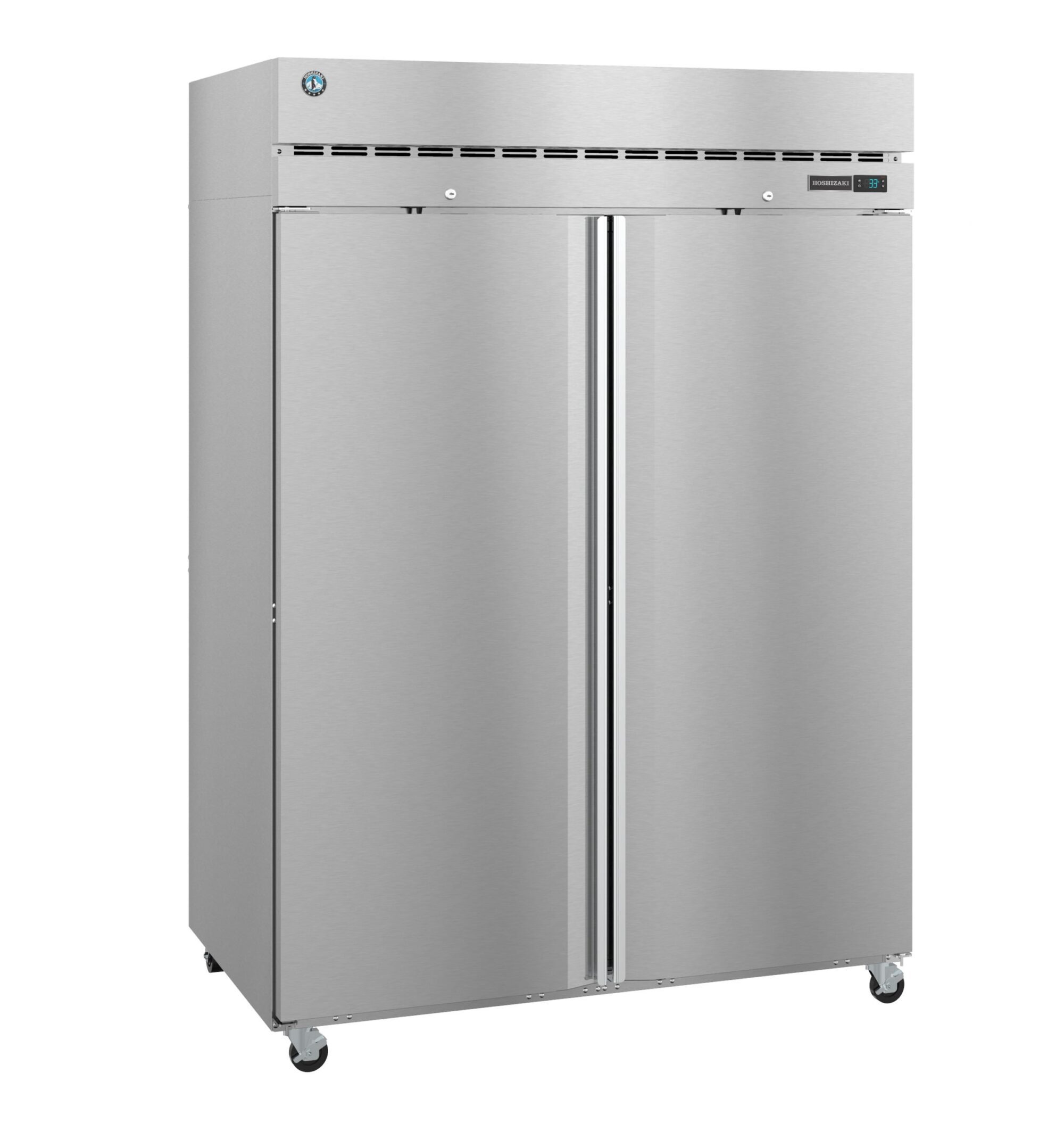

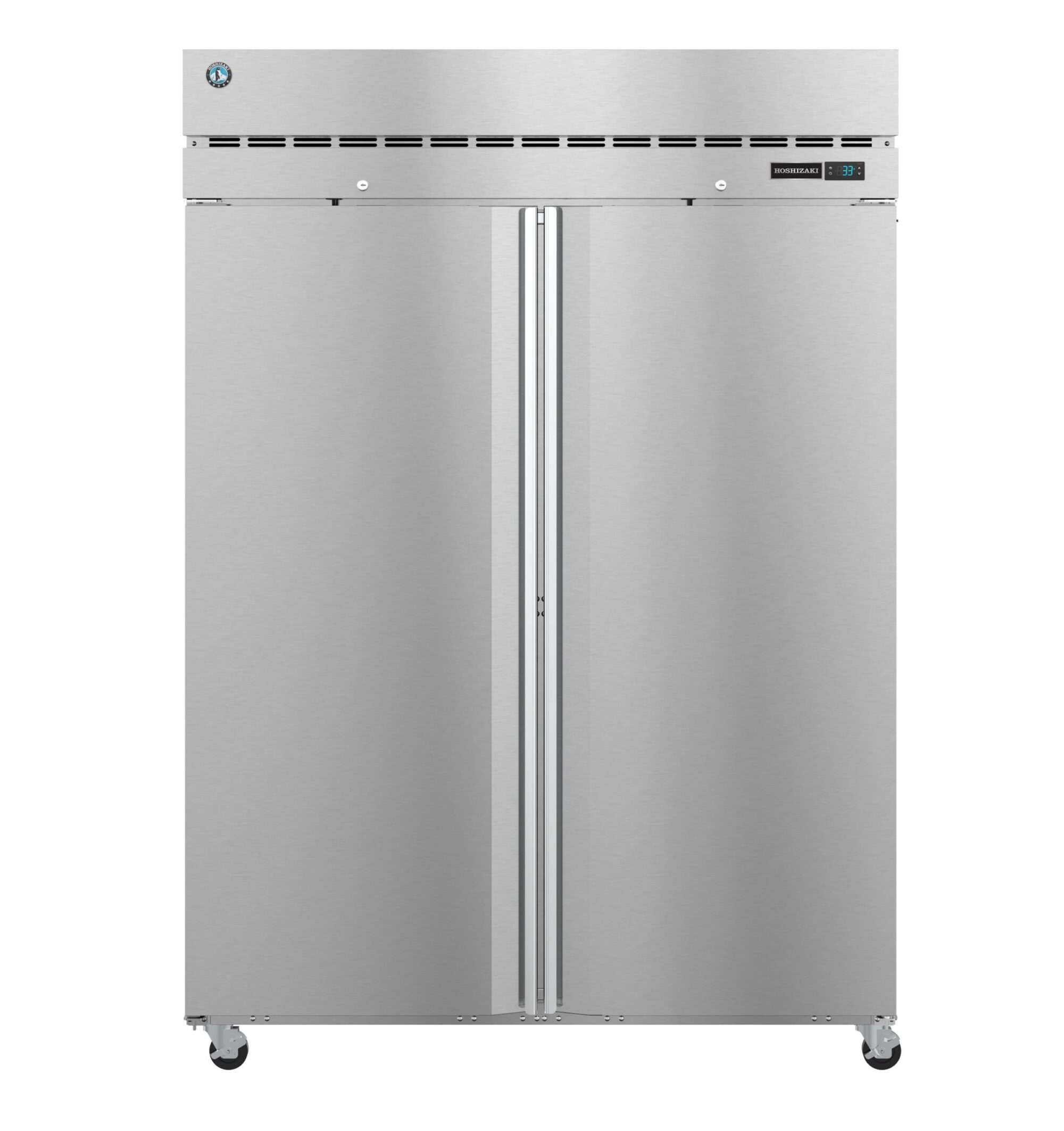

R2A-FS Refrigerator, Two Section Upright, Full Stainless Doors with Lock

55″ W X 33″ D X 79″ H
Volume
52.16
Electrical
115v/60/1
Sections
2

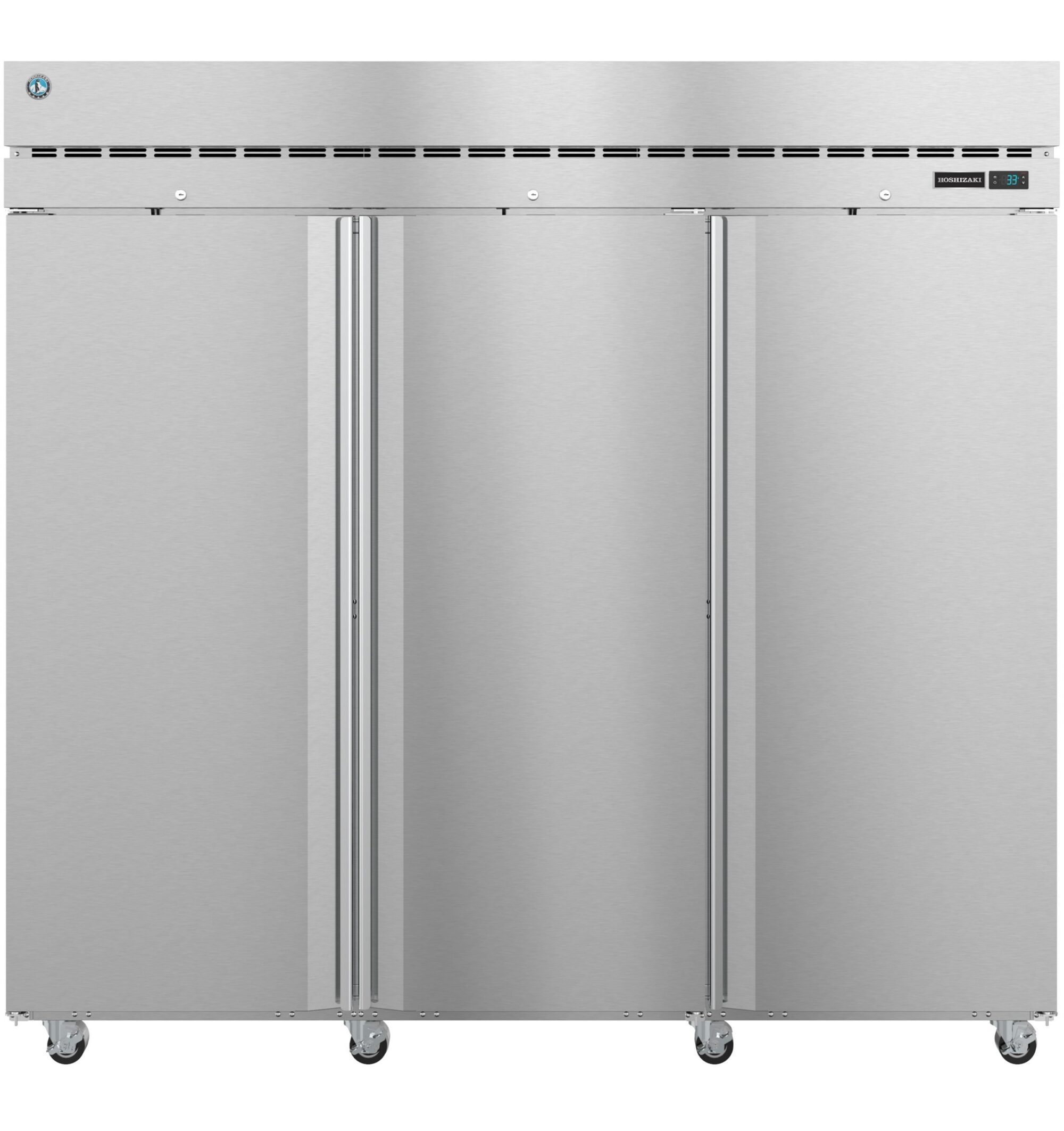

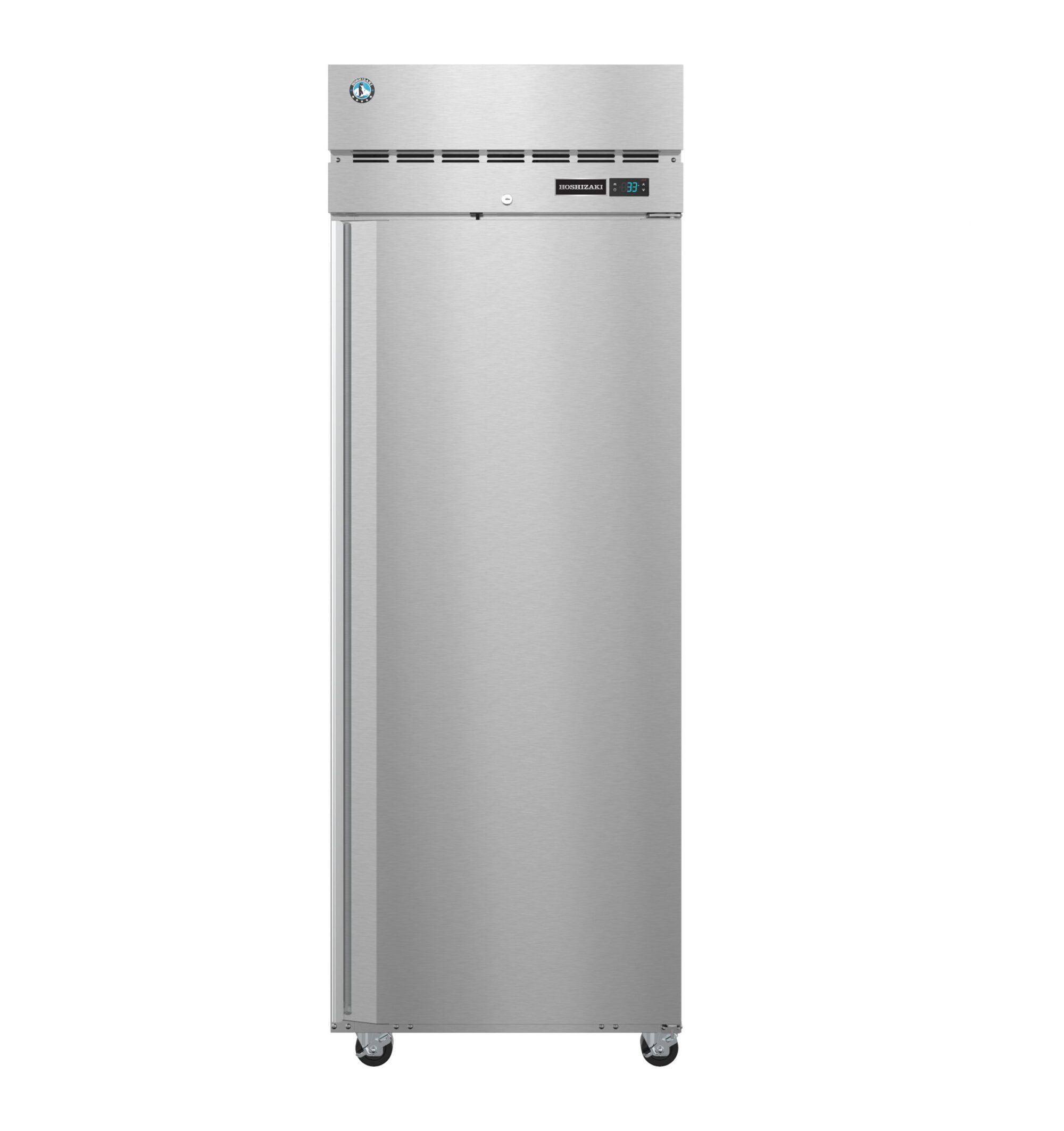

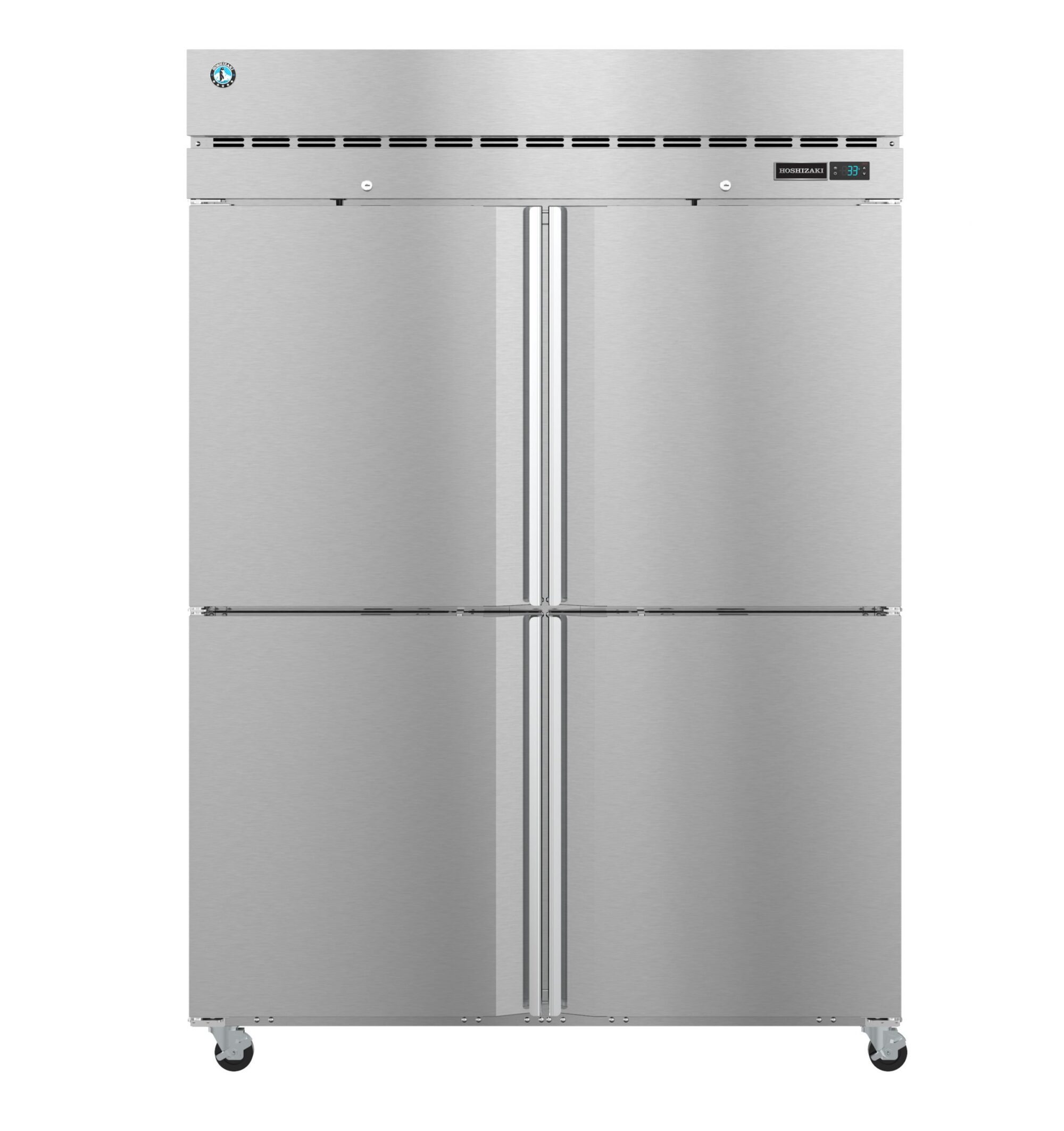

Alternate Configurations
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 3.47 kwh/day, Amperage: 9.5, Max Fuse/HACR Breaker: 15 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 31 – 52°F, Refrigerant: R290
Refrigeration Data
Nominal Compres. of 1545 BTU/hr at 1/2 HP, Heat Rejection: 5.05 BTU/hr
Shipping Weight
560
Storage Specs
Nominal storage capacity: 52.16 ft3, Interior storage capacity: 50.37 ft3, Door opening: 21.75″ W x 59.25″ H, Depth with door fully extended: 59.25″ D, Shelves included: 6
Warranty
Five Years: Labor warranty on entire machine. Seven Years: Parts warranty on Compressor.

Overview and Features

The R2A-FS Steelheart Series Upright two section refrigerator with full stainless doors is a space saving workhorse. Solid state control system with temperature alarms and LED display (°F or °C). With a net capacity of 50.37 cubic feet this efficient upright refrigerator and front air flow design is perfect for hot/tight kitchens. The R2A-FS is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.

The R2A-FS also includes Interior LED light bar is mounted horizontally on the ceiling, (4) 4″ stem casters (2 with brakes) are standard, plus a field reversible, spring assisted self closing door with stay open feature (no kit req’d). Electrical consumption of 3.47 kWh/day at 9.5 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Additional air filter. The unit is ETL Safety (US & C) Listed, ETL Sanitation and includes a six years parts warranty, five years labor warranty, and seven years compressor warranty (visit hoshizakiamerica.com/support/warranty for eligibility information).

  • Dimensions: 55″ W x 33.5″ D x 79.5″ H
  • Net capacity of 50.37 cubic feet
  • Unique “ducted” air distribution system
  • Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
  • Stainless steel exterior (front, sides, top) and a stainless steel interior
  • Field reversible, spring assisted self closing door with stay open feature (no kit req’d)
  • One piece, full door length, extruded aluminum flush mount door handle
  • Lockable Full Stainless Doors
  • Insulated with 2 3/8″ CFC free, foamed in place polyurethane
  • Interior LED light bar is mounted horizontally on the ceiling
  • Solid state control system with temperature alarms and LED display (°F or °C)
  • R290 refrigerant
  • (4) 4″ Stem Casters (2 with brakes) are standard
  • Includes 6 epoxy coated wire coated wire shelves adjustable in 1″ increments on stainless steel supports
  • Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Additional air filter
  • Nominal Compres. of 1545 BTU/hr at 1/2 HP
  • 115v/60/1, 10 ft. cord and plug
  • Shipping Crate: 58.25″ L x 36.5″ D x 81″ H at 560 lbs
  • Top mounted energy efficient non-electric evaporation system
  • Six Years parts warranty, Five Years labor warranty, Seven Years compressor warranty (Visit hoshizakiamerica.com/support/warranty for eligibility information)
