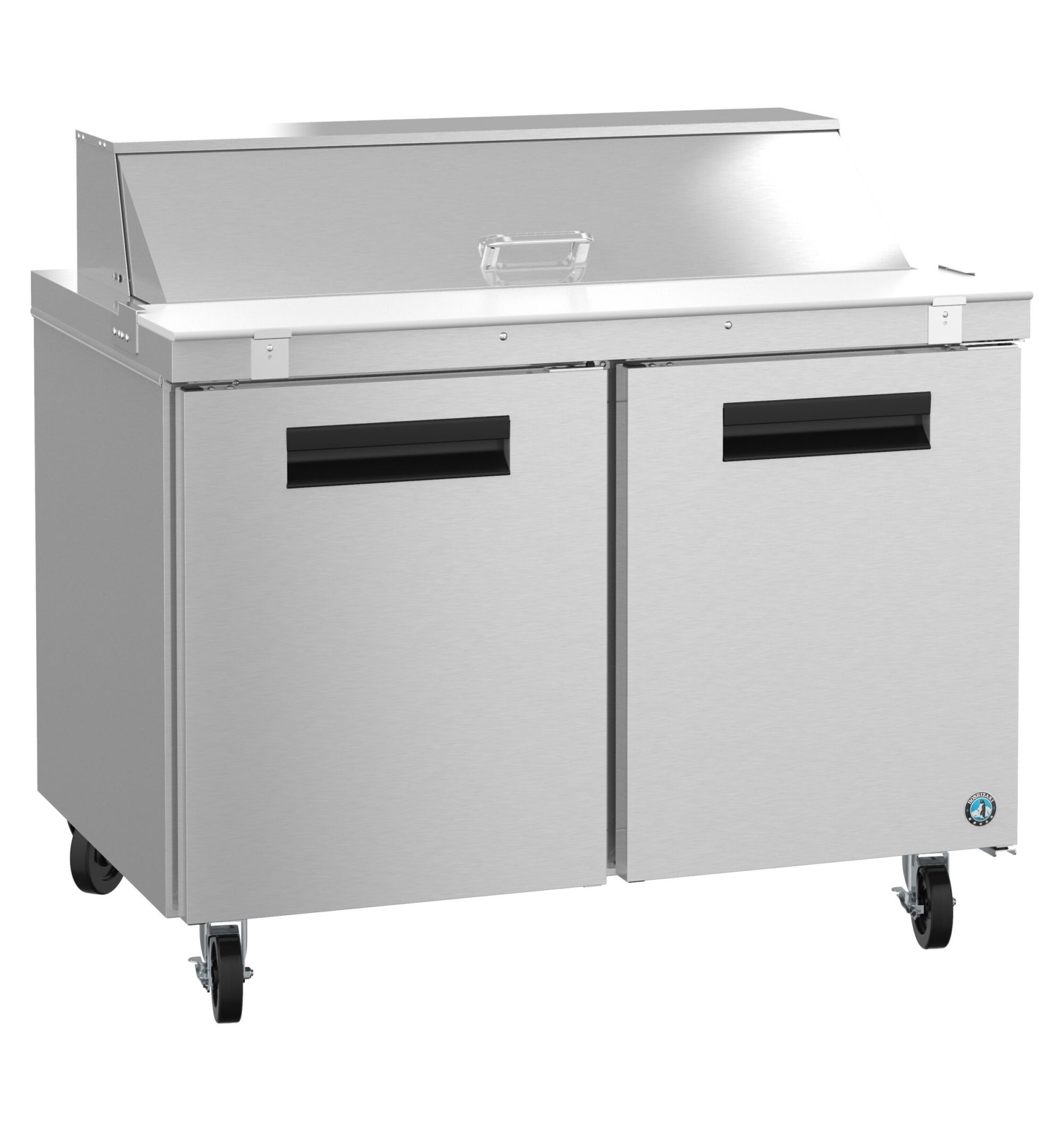

SR48B-12 Refrigerator, Two Section Sandwich Prep Table, Stainless Doors

48″ W X 34″ D X 44″ H
Volume
13.66
Electrical
115v/60/1
Sections
2
Alternate Configurations
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 2.38 kwh/day, Amperage: 3, Max Fuse/HACR Breaker: 15 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 32 – 52°F, Refrigerant: R290
Refrigeration Data
Nominal Compres. of 1354 BTU/hr at 1/5 HP, Heat Rejection: 403 BTU/hr
Shipping Weight
301
Storage Specs
Nominal storage capacity: 13.66 ft3, Interior storage capacity: 12 ft3, Door opening: 19.5″ W x 23″ H, Depth with door fully extended: 52.5″ D, Shelves included: 2
Warranty
Five Years: Labor warranty on entire machine. Seven Years: Parts warranty on Compressor.

Overview and Features

The SR48B-12 Steelheart Series Sandwich two section refrigerator with stainless doors is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 12 cubic feet this efficient sandwich refrigerator and front air flow design is perfect for hot/tight kitchens. The SR48B-12 is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.

The SR48B-12 also includes (2) epoxy coated wire shelves adjustable in 1/2″ increments on anodized aluminum supports, (4) 6″ stem casters (2 with brakes) are standard, plus a field reversible, spring assisted self closing door with stay open feature (no kit req’d). Electrical consumption of 2.38 kWh/day at 3 Amps, 10 ft long cord with a 5 – 15P NEMA plug. 48″ x 10″ x 0.5″ thick white polyethylene cutting board is standard. The unit is ETL Safety (US & C) Listed, ETL Sanitation, Georgia Made Certified and includes a six years parts warranty, five years labor warranty, and seven years compressor warranty (visit hoshizakiamerica.com/support/warranty for eligibility information).

  • Dimensions: 48″ W x 34″ D x 44.25″ H
  • Net capacity of 12 cubic feet
  • Innovative air distribution system distributes air evenly to maintain product temperature
  • Enamel coated evaporator coil for extended life
  • Stainless steel exterior (front, sides, top) and a stainless steel interior
  • Field reversible, spring assisted self closing door with stay open feature (no kit req’d)
  • Extruded aluminum flush mount door handle
  • (2) stainless steel doors with ABS interior liner
  • Insulated with 2″ CFC free, foamed in place polyurethane
  • (2) epoxy coated wire shelves adjustable in 1/2″ increments on anodized aluminum supports
  • Engineered to maintain food safe temperatures in 100°F ambient conditions
  • R290 refrigerant
  • (4) 6″ Stem Casters (2 with brakes) are standard
  • Includes (12) polycarbonate plastic 1/6th size pans, 4″ deep (can accept 6″ deep pans)
  • 48″ x 10″ x 0.5″ thick white polyethylene cutting board is standard
  • Nominal Compres. of 1354 BTU/hr at 1/5 HP
  • 115v/60/1, 10 ft. cord and plug
  • Shipping Crate: 52.5″ L x 36″ D x 46.5″ H at 301 lbs
  • Automatic time-initiated heated defrost
  • Six Years parts warranty, Five Years labor warranty, Seven Years compressor warranty (Visit hoshizakiamerica.com/support/warranty for eligibility information)
