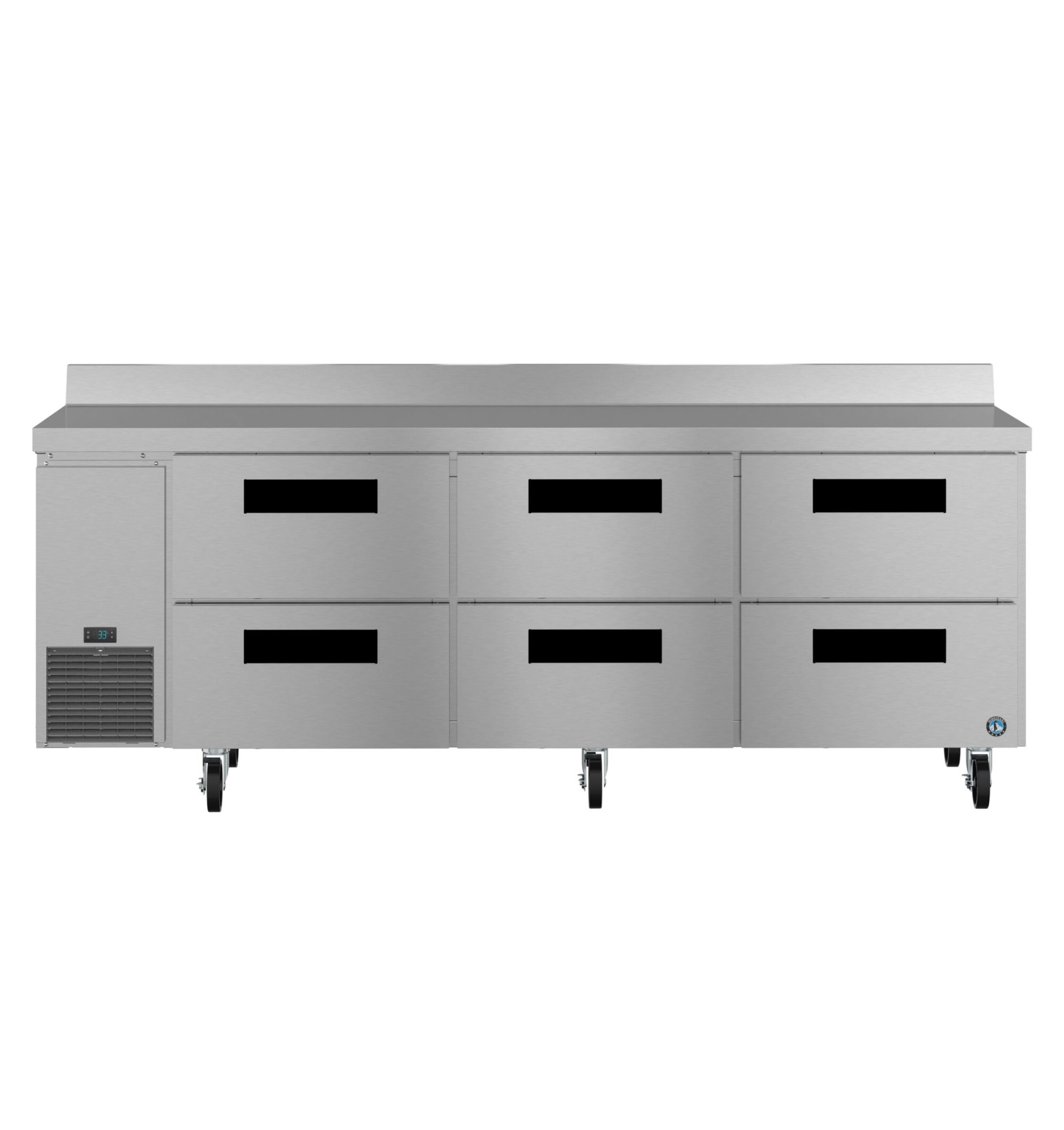

WLR93B-D6 Side Mount Refrigerator, Three Section Worktop, Stainless Drawers

93″ W X 33″ D X 40″ H
Volume
30.17
Electrical
115v/60/1
Sections
3
Alternate Configurations
Electrical Specs
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 1.87 kwh/day, Amperage: 5, Max Fuse/HACR Breaker: 15 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 28 – 45°F, Refrigerant: R290
Refrigeration Data
Nominal Compres. of 2431 BTU/hr at 1/3 HP, Heat Rejection: 576 BTU/hr
Shipping Weight
612
Storage Specs
Nominal storage capacity: 30.17 ft3, Interior storage capacity: 30.17 ft3, Drawer opening: ” W x ” H, Depth with drawer fully extended: 57.5″ D, Drawers included: 6
Warranty
Five Years: Labor warranty on entire machine. Seven Years: Parts warranty on Compressor.

Overview and Features

The WLR93B-D6 Steelheart Series Worktop three section side mount refrigerator with stainless drawers is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 30.17 cubic feet this efficient worktop side mount refrigerator and front air flow design is perfect for hot/tight kitchens. The WLR93B-D6 is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.

The WLR93B-D6 also includes Drawers capacity: (2) 12″ x 20″ full size, 6″ deep pans (pans by others), (4) 6″ stem casters (2 with brakes) are standard, plus the drawer slides are constructed of 14 gauge stainless steel with durable acetal rollers. Electrical consumption of 1.87 kWh/day at 5 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 2″ or 4″ casters, Overshelves (single or double), Stainless steel back, Drawer divider bars (vertical or horizontal), Drawer locks. The unit is ETL Safety (US & C) Listed, ETL Sanitation, Georgia Made Certified and includes a six years parts warranty, five years labor warranty, and seven years compressor warranty (visit hoshizakiamerica.com/support/warranty for eligibility information).

  • Dimensions: 93″ W x 33.25″ D x 40.25″ H
  • Net capacity of 30.17 cubic feet
  • Innovative air distribution system distributes air evenly to maintain product temperature
  • Enamel coated evaporator coil for extended life
  • Stainless steel exterior (front, sides, top) and a stainless steel interior
  • The drawer slides are constructed of 14 gauge stainless steel with durable acetal rollers
  • Extruded aluminum flush mount drawer handles
  • (6) stainless steel drawers, fully welded construction and securely fastened in the cabinet
  • Insulated with 2″ CFC free, foamed in place polyurethane
  • Drawers capacity: (2) 12″ x 20″ full size, 6″ deep pans (pans by others)
  • Engineered to maintain food safe temperatures in 100°F ambient conditions
  • R290 refrigerant
  • (4) 6″ Stem Casters (2 with brakes) are standard
  • Optional kits: 2″ or 4″ casters, Overshelves (single or double), Stainless steel back, Drawer divider bars (vertical or horizontal), Drawer locks
  • Nominal Compres. of 2431 BTU/hr at 1/3 HP
  • 115v/60/1, 10 ft. cord and plug
  • Shipping Crate: 95.25″ L x 34.5″ D x 40″ H at 612 lbs
  • Six Years parts warranty, Five Years labor warranty, Seven Years compressor warranty (Visit hoshizakiamerica.com/support/warranty for eligibility information)
